Tinyeh is one of the leading flow wrapping packing machine manufacturers in China, known for producing high-performance rotary pillow packing machines. The company prides itself on delivering machines that are reliable, efficient, and cost-effective. With years of experience and a solid reputation, Tinyeh offers machines that meet the diverse needs of various industries.
Automatic Flow Wrapping Rotary Pillow Packing Machine is a versatile and efficient packaging solution designed to handle a wide range of products. This machine is ideal for packing various regular objects such as biscuits, pies, chocolates, bread, instant noodles, mooncakes, drugs, daily applications, industrial parts, paper boxes, and trays.

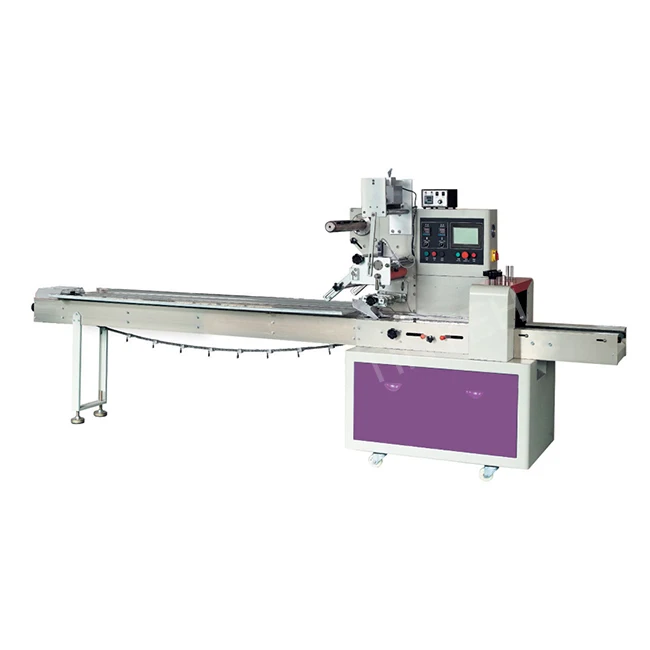

Automatic Flow Wrapping Rotary Pillow Packing Machine With Three Servos

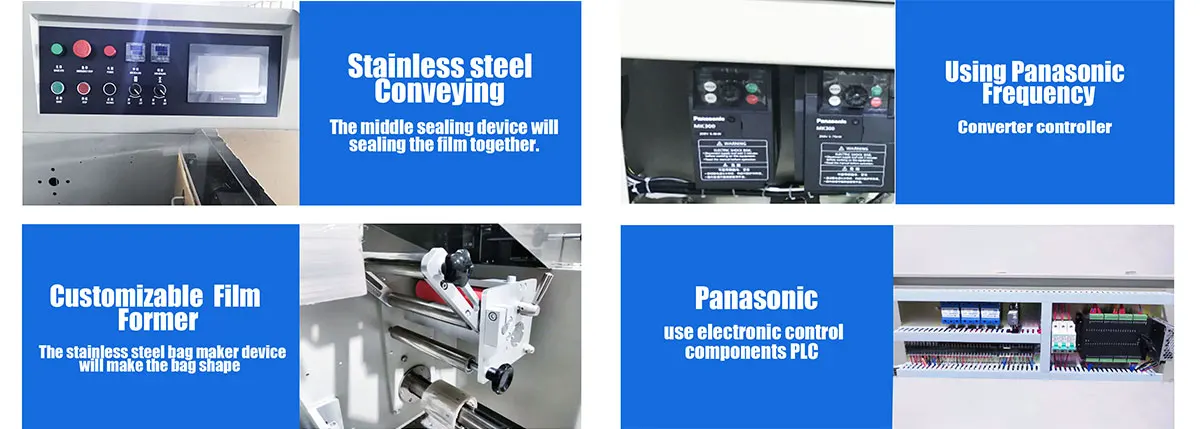

Key Features
Dual Frequency Conversion Control
Allows the bag length to be set and cut in one step, saving both time and film.
User-Friendly Interface
Features easy and quick settings and operation, enhancing user experience and efficiency.
Self Failure Diagnosis
Provides a clear failure display, making it easier to identify and resolve issues promptly.
High Sensitivity Photoelectric Eye Color Tracing
Ensures extra accuracy with numerical input of cutting and sealing positions.
Temperature Independent PID Control
More suitable for packaging different materials, ensuring consistent quality.
Positioned Stop Function
Prevents the knife from sticking and eliminates film waste.
Simple Driving System
Reliable working and convenient maintenance due to its straightforward design.
Software-Based Control
All control functions are realized through software, making it easy to adjust functions and upgrade technology.
Specifications
Min. Order: 1 set
Warranty: 24 months
Package: Wooden box
Shipping Options: Ocean Freight, Land freight, Air freight
| Model | TY-250B | TY-250D | TY-250E | TY-250S | TY-320B | TY-320D |
| Film width | Max.250mm | Max.180mm | Max.320mm | |||
| Bag length | 65-190 or 120-280mm | 90-220mm | 50-115mm | 45-90mm | 65-190 or 120-280mm | 90-220 or 150-330mm |
| Bag width | 30-110mm | 30-80mm | 50-160mm | |||
| Product height | Max.40mm | Max.55mm | Max.35mm | Max.40mm | Max.55mm | |
| Film roll diameter | Max.320mm | |||||
| Packaging rate | 40-230bag/min | 60-330bag/min | 40-230bag/min | |||
| Packaging rate | 40-230bag/min | 60-330bag/min | 40-230bag/min | |||
| Power | 220V 50/60Hz 2.4W | 220V 50/60Hz 2.4W | 220V 50/60Hz 2.4W | |||
Applications
This machine is suitable for packaging various kinds of regular objects including, but not limited to:
Food Items: Biscuits, pies, chocolates, bread, instant noodles, moon-cakes
Pharmaceuticals: Drugs
Daily Applications: Various household items
Industrial Parts: Components and parts used in various industries
Packaging Materials: Paper boxes, trays
Conclusion
The Tinyeh Automatic Flow Wrapping Rotary Pillow Packing Machine stands out for its advanced features, user-friendly interface, and versatility. It is an excellent choice for businesses looking to improve their packaging efficiency and accuracy. With a 24-month warranty and multiple shipping options, Tinyeh ensures that their machines are accessible and reliable for global customers.
For more detailed information, you can visit the official Tinyeh website for personalized assistance.
