Tinyeh is a professional liquid doypack machine factory in China, our liquid doypack machine is great for packaging both liquid and thick liquid.
Liquid: Detergent, fruit juice, miller wine, soy sauce, vinegar, drinks etc.
Thick liquid: Chilli sauce, tomato sauce, peanut butter, jam, bean sauce etc.
Min.order:1 set
Warranty:24 month
Package:Wooden box
Shipping: Ocean freight, Land freight, Air freight
Application:
Liquid: Detergent, fruit juice, miller wine, soy sauce, vinegar, drinks etc. Thick liquid: Chilli sauce, tomato sauce, peanut butter, jam, bean sauce etc.
Kindly Reminder:
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

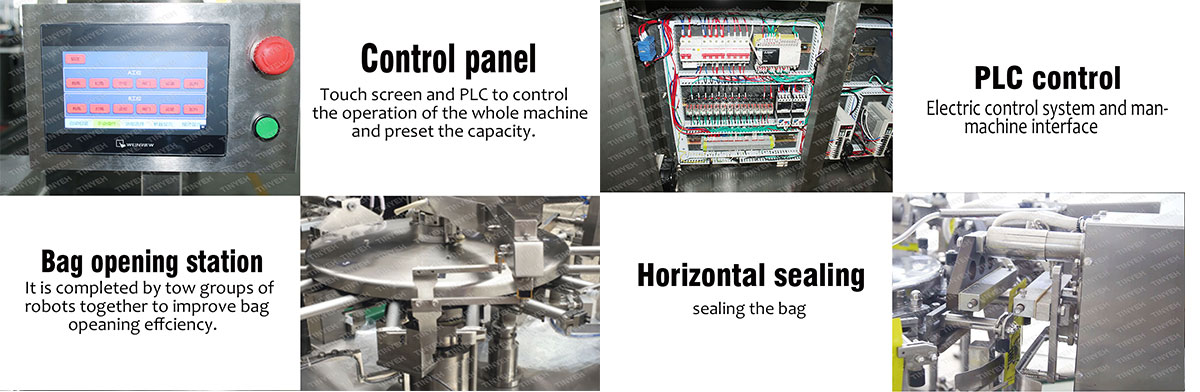

Automatic rotary packing machine adopt precision indexing device and PLC to control each action and working station to make sure the machine operates easily and does accurately.
The speed of this machine is adjusted by frequency conversion with the range, and the actual speed depends on type of products and pouch..
Automatic checking system can check bag situation, filling and sealing situation.
The system shows: 1.no bag feeding, no filling and no sealing; 2.no bag opening/opening error, no filling and no sealing; 3.no filling, no sealing.
Model |
TY-P8200/TY-P8250 |
Packing material |
3-side, four edge-sealing bag, self-reliance bag, handbag, spout bags, zipper bag, compound bag, etc |
Bag width |
70-200/100-250MM |
Filling range |
10-1000g/20-2500g |
Packing speed |
40-60bag/min(speed is determined by the product filling quantity) |
Average precision |
≤ ±1g |
Work flow |
giving bag→coding →opening →filling 1 →filling 2→ auxiliary→ exhaust→heat sealing→ .forming and output product |
