In the fast-paced world of manufacturing and packaging, efficiency and precision are crucial elements. One of the pivotal machines revolutionizing this landscape is the pouch filling and packing machine. These machines are integral in the production line, seamlessly filling and packaging various products, ranging from food items to pharmaceuticals.



Pouch Filling and Packing Machines



Pouch filling and packing machines are versatile equipment designed to automate the process of filling pouches or bags with a variety of substances. They are employed across diverse industries such as food and beverage, pharmaceuticals, cosmetics, and more.

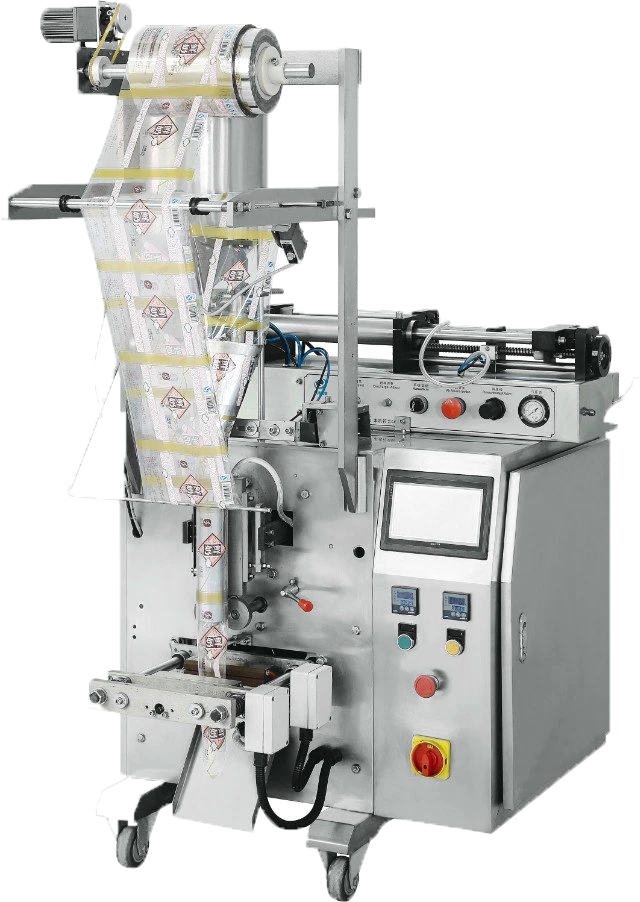

High Speed Sauce Pouch Filling and Packaging Tomato Ketchup Sachet Paste Packing Machine



Components and Structure



Feeding System: The process begins with the feeding system where raw materials or products are loaded into the machine's hopper or feeding mechanism.

Pouch Forming: Next, the machine forms the pouches using rolls of packaging material. These rolls are fed through the machine, and the pouches are shaped, sealed, and cut to the required size.

Filling Mechanism: Once the pouches are formed, the filling mechanism dispenses the precise amount of product into each pouch. This can be done through various methods such as auger filling, piston filling, or volumetric filling, depending on the product's nature and consistency.

Sealing Process: After filling, the machine seals the pouches securely to prevent any spillage or contamination. Heat sealing or other sealing methods are used based on the material of the pouch.

Coding and Marking: Some machines incorporate coding and marking systems to print necessary information like expiry dates, batch numbers, or product details on the pouches.



Operating Principles



Automation: The pouch filling and packing machines are highly automated, reducing the need for manual intervention. Sensors, controllers, and programming ensure precision and consistency in the filling and packing process.

Adjustability: They are designed to be adaptable to various pouch sizes, fill volumes, and packaging materials. This flexibility is essential for accommodating different products and production requirements.

Efficiency: Pouch filling and packing machines are engineered for efficiency, capable of high-speed operations while maintaining accuracy in filling and sealing.

Hygiene and Safety: The materials used and the design of these machines adhere to strict hygiene and safety standards, crucial especially in industries like food and pharmaceuticals.

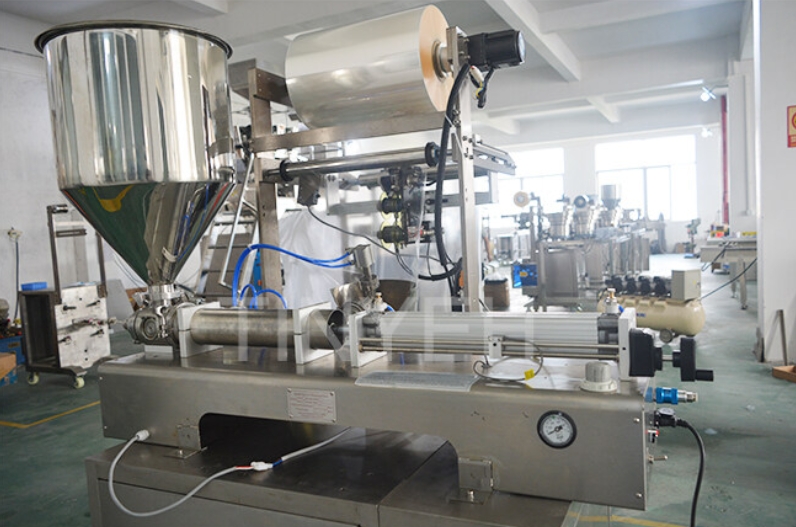

High Speed Sauce Pouch Filling and Packaging Tomato Ketchup Sachet Paste Packing Machine



As a pouch filling and packing machine manufacturer in China, our high-performance pouch packing machines are suitable for the packaging of various liquids and sauces such as liquid, sauce, soup, edible oil, liquid medicine, cream,seasoning sauce, honey, shampoo and shower gel.





Feature

● Photoelectric eye control system, film pulling with step motor, stable performance, low noise.

● With Fully automatic metering, filling, and bag making, date printing to product output, and one-time completion.

● According to the principle of spring pressing, pneumatic cutting, is more stable for 5 welding-bag.

● Positioning stop function, no sticking knife, no waste of film.

With a simple drive system, for stable operation and convenient maintenance.

● The whole machine is controlled by software, convenient for function adjusting and technical upgrades.



Type	TY-320	TY-380	TY-320S
Film width	120-320mm	180-380mm	80-220mm
Bag length	50-200mm	60-280mm	50-200mm
Bag width	50-150mm	60-180mm	30-100mm
Roll film diameter	Max.300mm	Max.320mm	Max.300mm
Packing rate	20-75bag/min (According to the product conditions)
Film thickness	0.04-0.07mm		0.04-0.12mm
Power	220V 50/60Hz 2.2KW	220V 50/60Hz 2.5KW	220V 50/60Hz 2.0KW
Machine quality	About 300KG	About 450KG	About 300KG



Conclusion



The efficiency, adaptability, and precision of pouch filling and packing machines make them indispensable in meeting the demands of modern manufacturing, catering to diverse industries, and ensuring quality packaging for a multitude of products. Whether it's the food on our shelves or the medications in our cabinets, these machines play a vital role in ensuring that products reach consumers reliably, efficiently, and safely.

Browse Tinyeh’s hot products and choose the packing machine that suits your production line. As a reliable packing machine manufacturer, we are committed to providing quality packing machines including powder filling machines, granule filling machines, liquid filling machines, etc. Contact us today and find the perfect solution for your project.
