Flow wrapping machines, also known as horizontal form-fill-seal machines, are essential in the packaging industry for their efficiency and versatility. These machines are widely used by various flow wrapping packing machine manufacturers and flow wrapping packing machine factories to package a range of products, from food items to medical supplies.

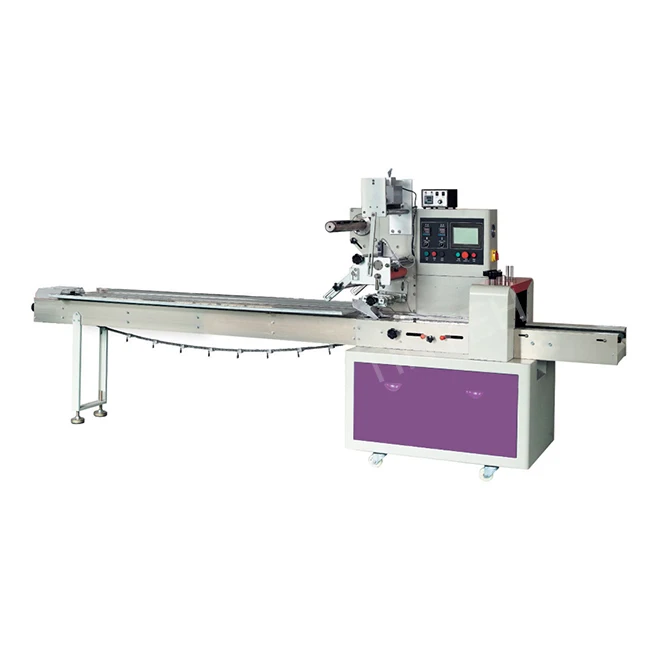

Automatic Flow Wrapping Rotary Pillow Packing Machine With Three Servos

Components of a Flow Wrapping Machine



A typical flow wrapping machine consists of several key components:

Infeed Conveyor: This moves the products into the machine.

Film Roll: A roll of packaging film that wraps around the products.

Forming Shoe: Guides the film around the product.

Sealing Wheels: Create a longitudinal seal along the length of the package.

Cutting and Sealing Jaws: Seal the ends of the package and cut it to the desired length.

Outfeed Conveyor: Transports the finished packages out of the machine.



Working Principle



The flow wrapping process involves several steps:

Product Feeding: Products are placed on the infeed conveyor, either manually or automatically. The conveyor moves the products into the machine, where they are spaced and aligned correctly.

Film Wrapping: As the products move forward, the film roll unwinds, and the forming shoe guides the film around the products. The film can be either registered (with printed marks for alignment) or unregistered (plain or continuously printed).

Longitudinal Sealing: The sealing wheels create a continuous seal along the length of the film, forming a tube around the product. This is known as the fin seal.

Cutting and End Sealing: The cutting and sealing jaws then seal the ends of the package and cut it to the appropriate length. This ensures that each product is individually wrapped and sealed.

Finished Product Discharge: The outfeed conveyor carries the finished packages to the next stage of the packaging process or to storage.



Advantages of Flow Wrapping Machines



Flow wrapping machines offer numerous benefits, making them a preferred choice for many industries:

High Speed and Efficiency: These machines can package products at speeds ranging from 50 to 300 packages per minute, depending on the model and configuration.

Versatility: Flow wrapping machines can handle various products, including food items like cookies, chocolates, and biscuits, as well as non-food items like medical supplies and hardware.

Hygienic Packaging: By minimizing human contact, flow wrapping machines ensure a high level of hygiene, which is crucial for food and pharmaceutical products.

Extended Shelf Life: The airtight seals created by these machines help extend the shelf life of perishable products by preventing exposure to air and contaminants.

Customization: Many flow wrapping machines offer customization options, such as printing capabilities for adding production dates and batch numbers, and the ability to switch between different packaging materials and sealing technologies.



Applications



Flow wrapping machines are used in various industries, including:

Food and Beverage: Packaging snacks, baked goods, confectionery, and frozen foods.

Pharmaceuticals: Wrapping medical supplies and devices.

Consumer Goods: Packaging items like cleaning wipes, napkins, and plastic cutlery.

Industrial Products: Wrapping hardware and electronic components.



Conclusion



Flow wrapping machines are a cornerstone of modern packaging, offering speed, efficiency, and versatility. Whether you are a flow wrapping packing machine manufacturer or a flow wrapping packing machine factory, understanding how these machines work can help optimize your packaging processes and meet the demands of your customers. With technological advancements, these machines continue to evolve, providing even greater flexibility and efficiency for various packaging needs.

By leveraging the capabilities of flow wrapping machines, businesses can ensure their products are packaged securely and attractively, enhancing product protection and consumer appeal. Tinyeh is a realiable flow wrapping packing machine factory, we can be your ideal choice. We are committed to providing quality products, contact us today and find the perfect solution for your project.
