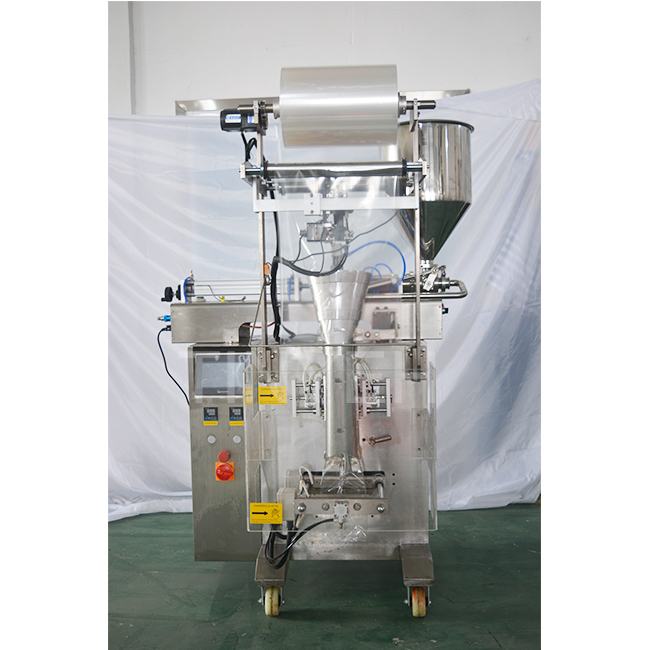

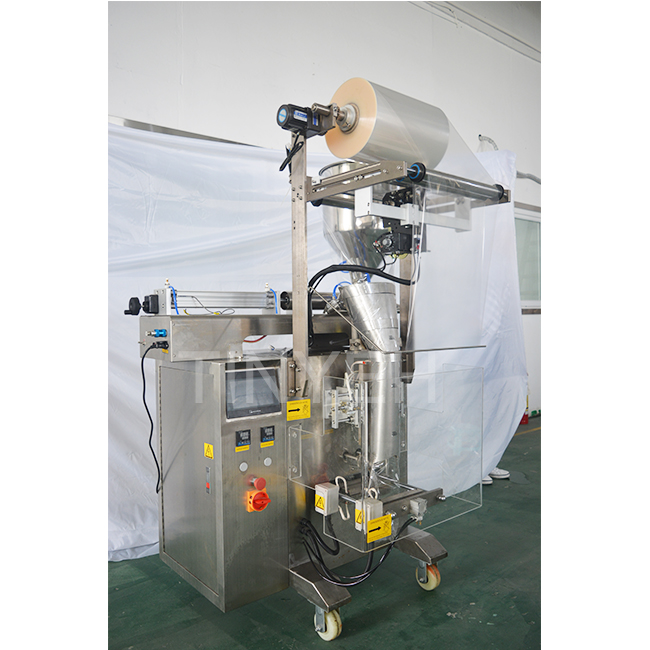

Fully auto multifunctional sunflower oil packing machine

Fully auto multifunctional sunflower oil packing machine

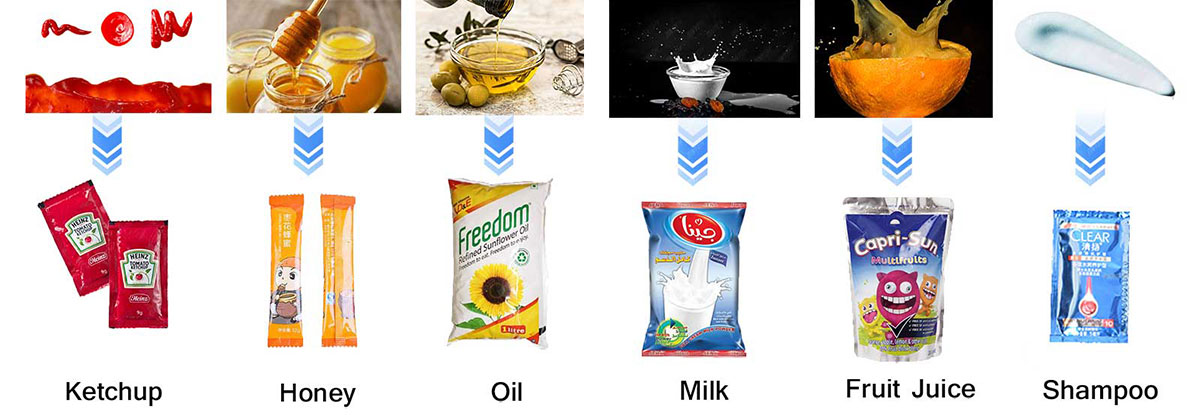

It is suitable for the packaging of various liquids and sauces such as liquid,sauce,soup,edible oil,liquid medicine,cream,seasoning sauce,honey,shampoo and shower gel.

Min.order：1 set

Warranty：24 month

Package：Wooden box

Shipping： Ocean freight, Land freight, Air freight

Inquiry

It is suitable for the packaging of various liquids and sauces such as liquid,sauce,soup,edible oil,liquid medicine,cream,seasoning sauce,honey,shampoo and shower gel.

FEATURE:

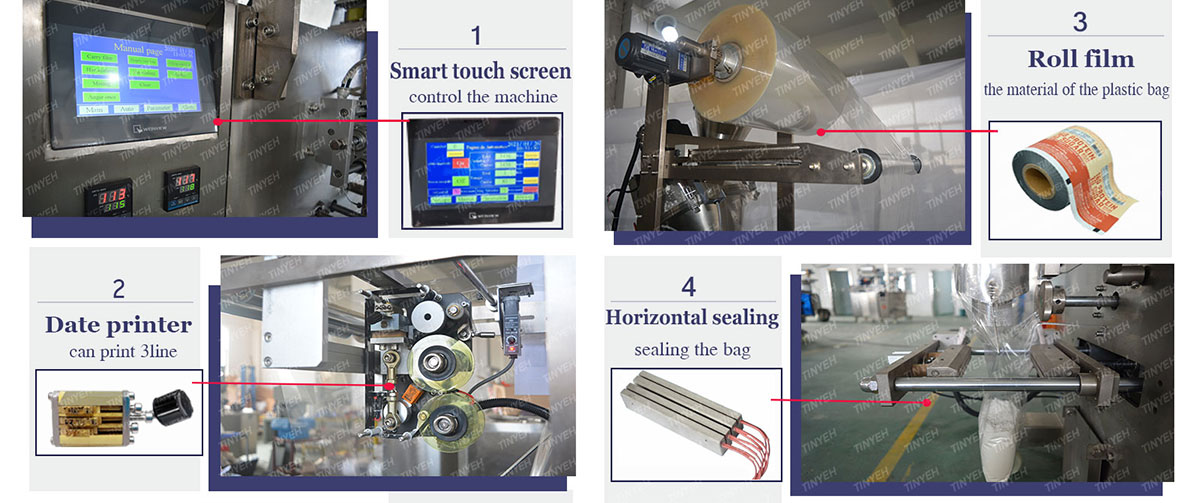

Photoelectric eye control system, film pulling with step motor, stable performance, low noise With Fully automatic metering, filling and bag making, date printing to product output, one-time completion.

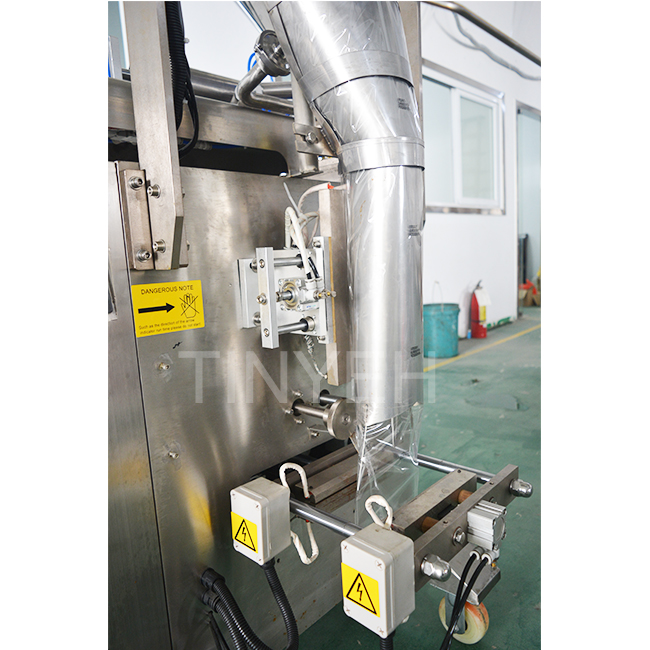

According to the principle of spring pressing, pneumatic cutting, more stable for 5 welding-bag

Positioning stop function, no sticking knife, no waste of film.

With simple drive system, for stable operation and convenient maintenance.

Whole machine controlled by software, convenient for function adjusting and technical upgrade

Type	TY-320	TY-380	TY-320S
Film width	120-320mm	180-380mm	80-220mm
Bag length	50-200mm	60-280mm	50-200mm
Bag width	50-150mm	60-180mm	30-100mm
Roll film diameter	Max.300mm	Max.320mm	Max.300mm
Packing rate	20-75bag/min (According to the product conditions)
Film thickness	0.04-0.07mm		0.04-0.12mm
Power	220V 50/60Hz 2.2KW	220V 50/60Hz 2.5KW	220V 50/60Hz 2.0KW
Machine quality	About 300KG	About 450KG	About 300KG

Fully auto multifunctional sunflower oil packing machine

After receiving your inquiry,We will send you the quotation as soon as possible.
