Finish Output Conveyor
Used for devliery finsihed product to testing equipment or packaging platform.
Specification
Delivery Value: 1m3/h
Voltage: 220V
Dimension: Customized
AIR COMPRESSOR
SPECIFICATION
|
型号 MODEL
|
TY-75
|
TY-50
|
TY-30
|
|
转速
|
1380r/min
|
1380r/min
|
1380r/min
|
|
外形尺寸 DIMENSION
|
1340×470×990mm
|
1050×410×810mm
|
1050×410×810mm
|
|
公称容积流量VOLUME FLOW
|
560L/min
|
420L/min
|
300L/min
|
|
功率POWER
|
7.5KW
|
5KW
|
3.3KW
|
|
储气罐容积COMPACITY
|
160L
|
100L
|
100L
|
|
整机重量WEIGHT
|
132KG
|
115KG
|
1061KG
|
Round Rotating Table
FEATURE
1.The rotary table is used to collect the materials packaging machine out of the packaged food, wait for further packaging operation and the finished products with the packing machine by belt conveyor connection.
2.The 304 stainless steel forging machine by forming, solid, safety, health.
3.The speed can be adjusted according to the labor speed.
SPECIFICATION
|
直径Diameter
|
1100mm
|
|
表面Surface
|
凹面(Concave)
|
|
电压Voltage
|
220V, 50HZ
|
|
功率Power
|
0.37KW
|
|
尺寸Dimension
|
(L)1100×(W)1100×(H)850mm
|
METAL DETECTOR
FEATURE
- The body is made of stainless steel, which is beautiful in appearance, dust-proof and easy to clean.
- Analog design is combined with digital design, greatly improving reliability and intelligence of the machine.
- Adopt new touch screen input and large scale integrated circuit. CPU collects analog signals and converts into digital.
- Adopt user-friendly interface design, ensuring that the entire operation is simple, human-machine interface can be seen at a glance and all commands can be done by operating the interface.
- Dynamically and visually display the dynamic test results of Fe and SUS, the sensitivity of current setting.
APPLICATION
Apply to detect metal leakage fallen in material and goods, such as iron, copper, lead, stainless steel, ect. And the sorting device automatically removes products that do not meet the standard.
SPECIFICATION
|
型号Model
|
TY-100
|
TY-150
|
TY-200
|
TY-250
|
TY-300
|
|
检测窗口高度Detecting Window Height
|
100mm
|
150mm
|
200mm
|
250mm
|
300mm
|
|
有效检测高度Effective Detecting Width(Max.)
|
400mm
|
400mm
|
400mm
|
400mm
|
400mm
|
|
Fe
|
0.8~1.0m
|
1.0~1.2mm
|
1.2~1.5mm
|
1.5~2.0mm
|
2.0~2.5mm
|
|
304SUS
|
1.5~2.0mm
|
2.0~2.3mm
|
2.3~2.5mm
|
2.5~3.0mm
|
3.0~3.5mm
|
|
机架材质Frame Material
|
不锈钢 Stainless Steel
|
Check Weigher
SPECIFICATION
|
型号(Model)
|
TY-1200g
|
TY-3000g
|
|
称重范围(Weighing Range)
|
1-1200g
|
3-3000g
|
|
最小显示值(Minimum Scale)
|
0.1g
|
0.1g
|
|
最高分选精度3σ(Accuracy)
|
±0.2-0.3
|
±1
|
|
最大分选速度(Throughout)
|
160
|
100
|
|
皮带速度(Belt Speed)
|
0-96
|
0-80
|
|
称重段尺寸(Belt Dimension)
|
400*220
|
500*300
|
|
剔除方式(Reject mechanism)
|
吹气式/摆臂式/推杆式 (Air Blower/Arm/Pusher)
|
|
可选装置(Optional Device)
|
声光报警灯，网络接口，反馈信号(Acoustic and light alarm lamp, network interface, feedback signal)
|
|
电压(Voltage)
|
220VAC ±10%, 50/60HZ
|
|
距地面高度
(Height from ground)
|
500-1000mm(可定制)
500-1000mm(customized)
|
FEATURE:
- Design to increase reliability and efficiency of your product
- High speed and precision with high speed A/D sampling controller
- Easy panel operation 10 inch interface touch screen
- Strong stainless steel structure, water proof model is optional
- Various preset program, easy and quick products changeover
- Easy release drive unit simplify daily maintenance and easy cleaning
- Speed adjustable by variable frequency motor
- Zero tracking: Zero by manual or automatic, dynamic zero tracking available
APPLICATION
The check weigher is used to check the products are qualified with preset weight. Widely be used in many fields like electronic, pharmacy, food, beverage, health treatment, daily use chemical, agriculture, and light industry ect.

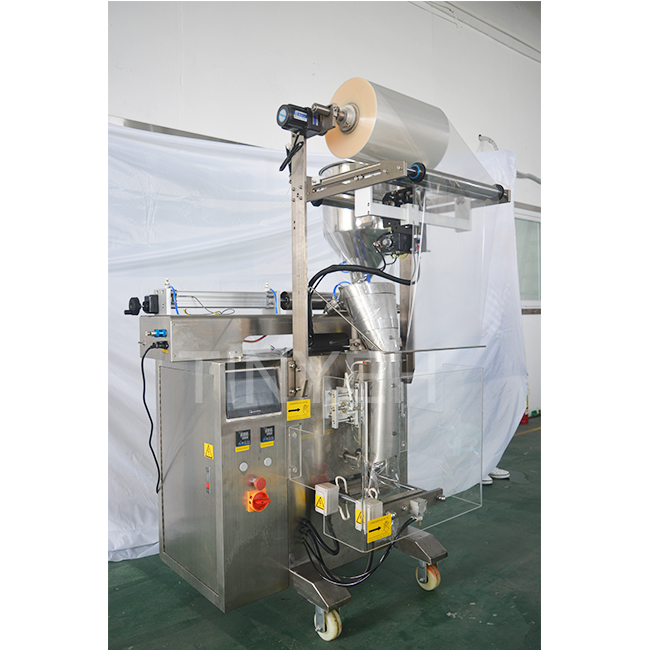

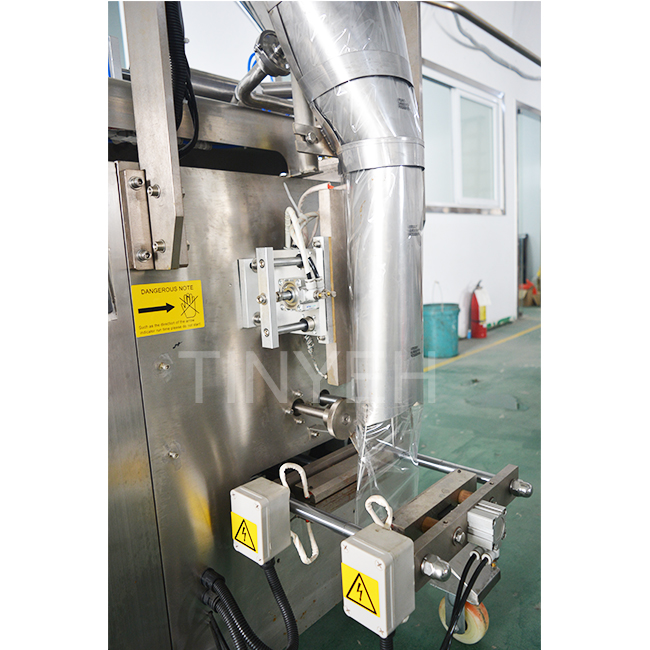

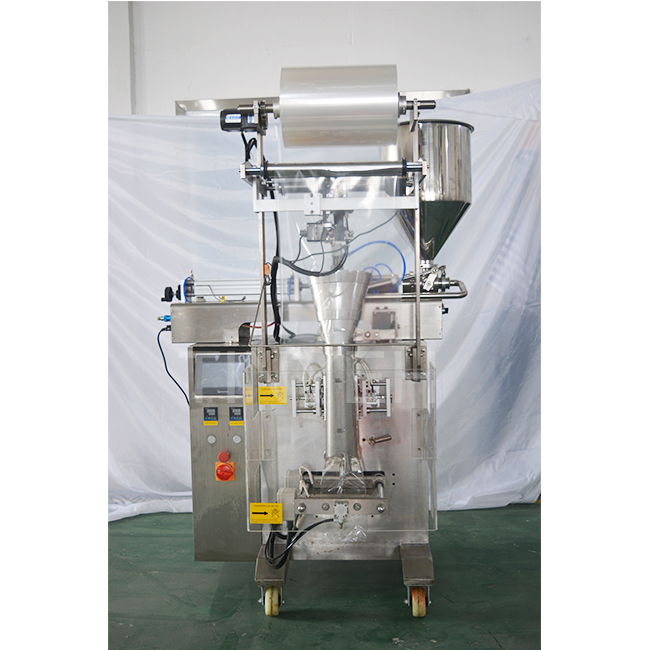

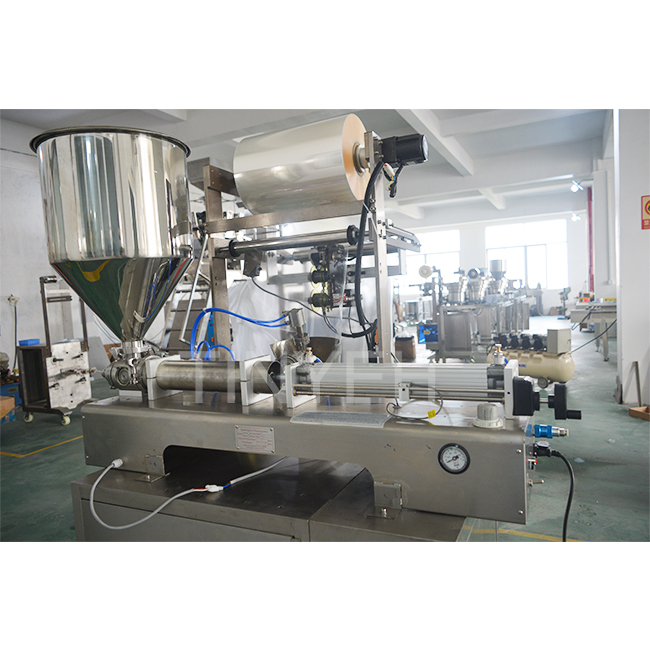

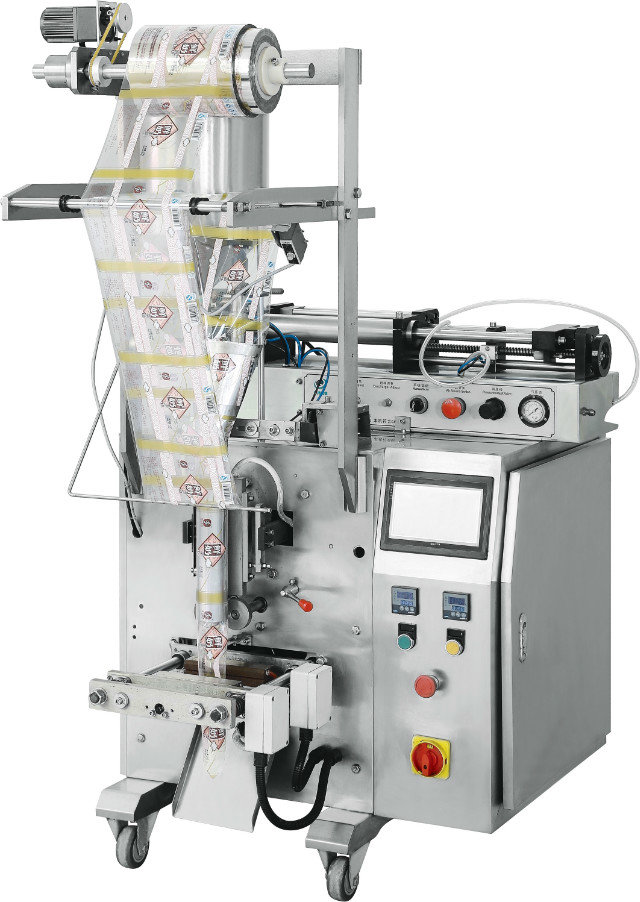

liquid machine
SPECIFICATION
|
名称Name
|
边封式粉剂包装机
Powder Packing Machine
|
边封式颗粒包装机
Granule Packing Machine
|
边封式液体包装机
Liquid Packing Machine
|
边封式链斗包装机
Bucker Packing machine
|
|
型号Model
|
TY-320/380G
|
TY-320/380G
|
TY-320/380L
|
TY-320/380X
|
|
机箱材质Machine Material
|
不锈钢Stainless Steel
|
不锈钢Stainless Steel
|
不锈钢Stainless Steel
|
不锈钢Stainless Steel
|
|
计量范围(Measuring Range)
|
1~500ml
|
1~500ml
|
1~500ml
|
1~500ml
|
|
包装速度(Packing Speed)
|
30-75bags/min
|
30-75bags/min
|
30-75bags/min
|
30-75bags/min
|
|
切口(Notch)
|
平切口/花纹连袋
Flat Notch/Pattern Cutting
|
平切口/花纹连袋
Flat Notch/Pattern Cutting
|
平切口/花纹连袋
Flat Notch/Pattern Cutting
|
平切口/花纹连袋
Flat Notch/Pattern Cutting
|
|
计量方式(Metering）
|
螺杆计量(Screw Measuring)
|
量杯计量(Cup Measuring)
|
流体泵计量(Pump Measuring)
|
流体泵计量(Pump Measuring)
|
|
包装材料(Film Material)
|
复合膜、铝膜(Composite film, Aluminum Foil)
|
复合膜、铝膜、无纺布(Composite film, Aluminum Foil, Non-woven fabric)
|
复合膜、铝膜(Composite film, Aluminum Foil)
|
复合膜、铝膜(Composite film, Aluminum Foil)
|
|
包装产品(Package Product)
|
面粉、奶粉、咖啡粉、药粉等(Flour, Milk Powder, Coffee Powder, medicine powder, ect)
|
砂糖、大米、茶叶等(Sugar, Rice, Tea, ect)
|
酱体、洗发水、蜂蜜、水等(Sauce, Shampoo, Honey, Water, ect)
|
五金、玩具、配件等（Hardware,toy,spare part,ect）
|
|
功率(Power)
|
1.2KW
|
1.2KW
|
1.2KW
|
1.2KW
|
|
电压(Voltage)
|
220V/380V
|
220V/380V
|
220V/380V
|
220V/380V
|
|
机器尺寸(Dimension)
|
(L)700×(W)600×(L)1700mm
|
(L)700×(W)600×(L)1700mm
|
(L)700×(W)600×(L)1700mm
|
(L)700×(W)600×(L)1700mm
|
|
重量(Weight)
|
180KG
|
180KG
|
180KG
|
180KG
|

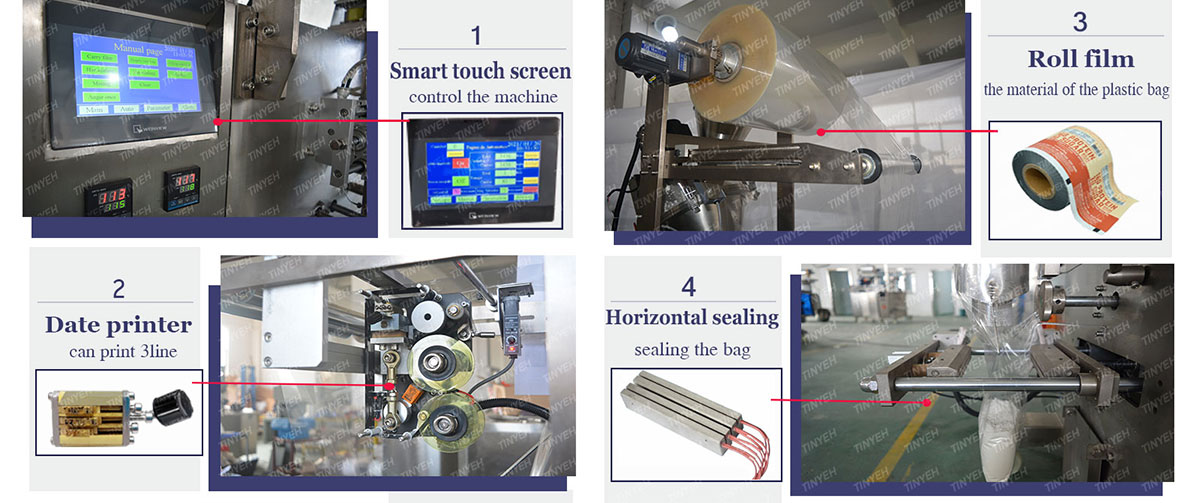

FEATURE:
- Photoelectric eye control system, film pulling with step motor, stable performance, low noise
- With
- Fully automatic metering, filling and bag making, date printing to product output, one-time completion.
- According to the principle of spring pressing, pneumatic cutting, more stable for 5 welding-bag
- Positioning stop function, no sticking knife, no waste of film.
- With simple drive system, for stable operation and convenient maintenance.
Whole machine controlled by software, convenient for function adjusting and technical upgrade
