Suitable for packing the fine powder material. Such as coffee powder, spice powder, milk powder, flour, fruits powder,seasoning, chemical medical powder, etc. It integrates metering,bagging,packing,sealing,date printing.
Min.order:1 set
Warranty:24 month
Package:Wooden box
Shipping: Ocean freight, Land freight, Air freight
As one of the top milk powder packing machine manufacturers in China, our powder packing machines integrate metering, bagging, packing, sealing, and date printing for fine powder product packaging, such as coffee powder, spice powder, milk powder, flour, fruits powder, seasoning, chemical medical powder, etc.
FEATURE:

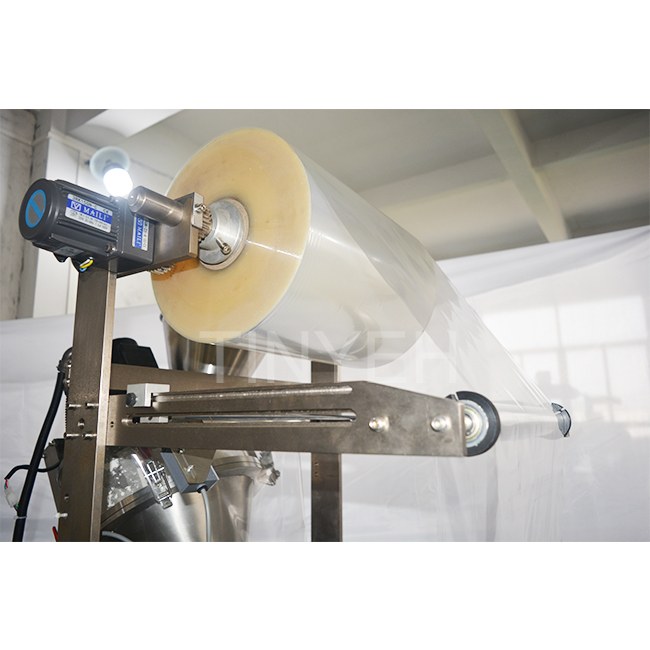

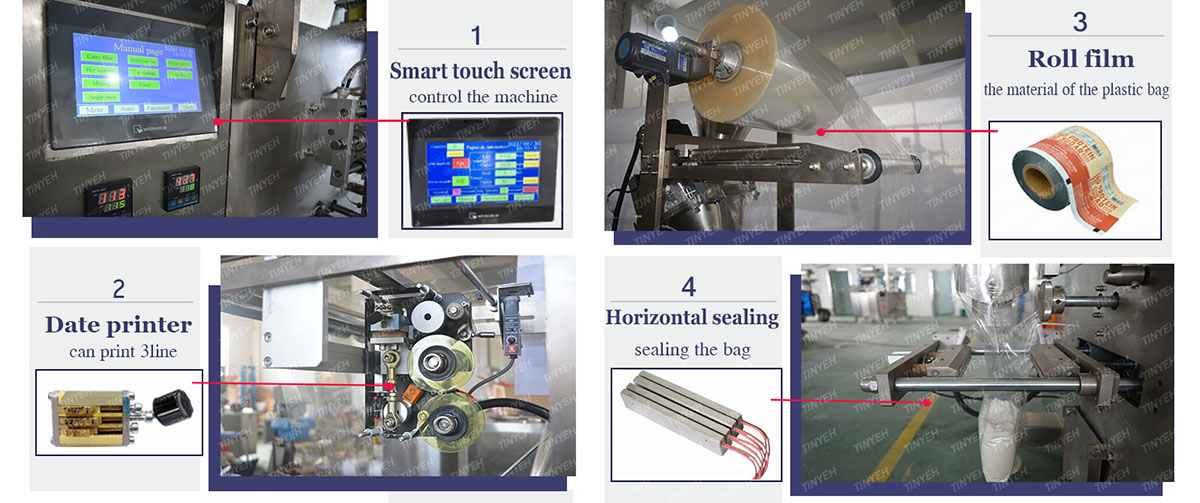

Photoelectric eye control system, film pulling with step motor, stable performance, low noise With Fully automatic metering, filling and bag making, date printing to product output, one-time completion.

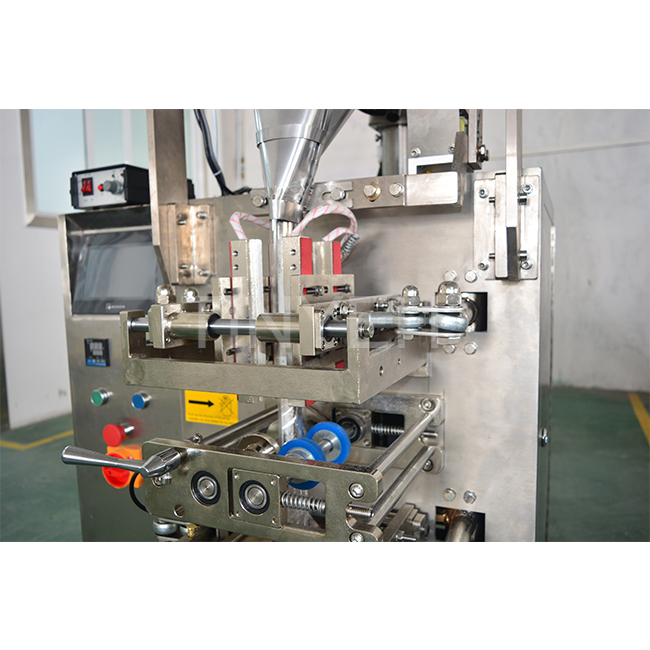

According to the principle of spring pressing, pneumatic cutting, more stable for 5 welding-bag
Positioning stop function, no sticking knife, no waste of film.
With simple drive system, for stable operation and convenient maintenance.
Whole machine controlled by software, convenient for function adjusting and technical upgrade
Type |
TY-320 |
TY-380 |
TY-320S |
Film width |
120-320mm |
180-380mm |
80-220mm |
Bag length |
50-200mm |
60-280mm |
50-200mm |
Bag width |
50-150mm |
60-180mm |
30-100mm |
Roll film diameter |
Max.300mm |
Max.320mm |
Max.300mm |
Packing rate |
20-75bag/min (According to the product conditions) |
||
Film thickness |
0.04-0.07mm |
0.04-0.12mm |
|
Power |
220V 50/60Hz 2.2KW |
220V 50/60Hz 2.5KW |
220V 50/60Hz 2.0KW |
Machine quality |
About 300KG |
About 450KG |
About 300KG |
Finish Output Conveyor
Used for devliery finsihed product to testing equipment or packaging platform.
Specification
Delivery Value: 1m3/h
Voltage: 220V
Dimension: Customized
AIR COMPRESSOR
SPECIFICATION
型号 MODEL |
TY-75 |
TY-50 |
TY-30 |
转速 |
1380r/min |
1380r/min |
1380r/min |
外形尺寸 DIMENSION |
1340×470×990mm |
1050×410×810mm |
1050×410×810mm |
公称容积流量VOLUME FLOW |
560L/min |
420L/min |
300L/min |
功率POWER |
7.5KW |
5KW |
3.3KW |
储气罐容积COMPACITY |
160L |
100L |
100L |
整机重量WEIGHT |
132KG |
115KG |
1061KG |
Round Rotating Table
FEATURE
1.The rotary table is used to collect the materials packaging machine out of the packaged food, wait for further packaging operation and the finished products with the packing machine by belt conveyor connection.
2.The 304 stainless steel forging machine by forming, solid, safety, health.
3.The speed can be adjusted according to the labor speed.
Specifications
SPECIFICATION直径Diameter |
1100mm |
表面Surface |
凹面(Concave) |
电压Voltage |
220V, 50HZ |
功率Power |
0.37KW |
尺寸Dimension |
(L)1100×(W)1100×(H)850mm |
Desiccant automatic bag feeding machine
Specifications
AUTOMATIC DESICCANT DISPENSE料包规格Pouch Length |
20-150mm |
投包速度 Speed |
20-160bags/min |
功率 Power |
0.35KW 220V 50HZ |
重量 Weight |
55kg |
机器尺寸 Machine Dimension |
600×750×1500 |

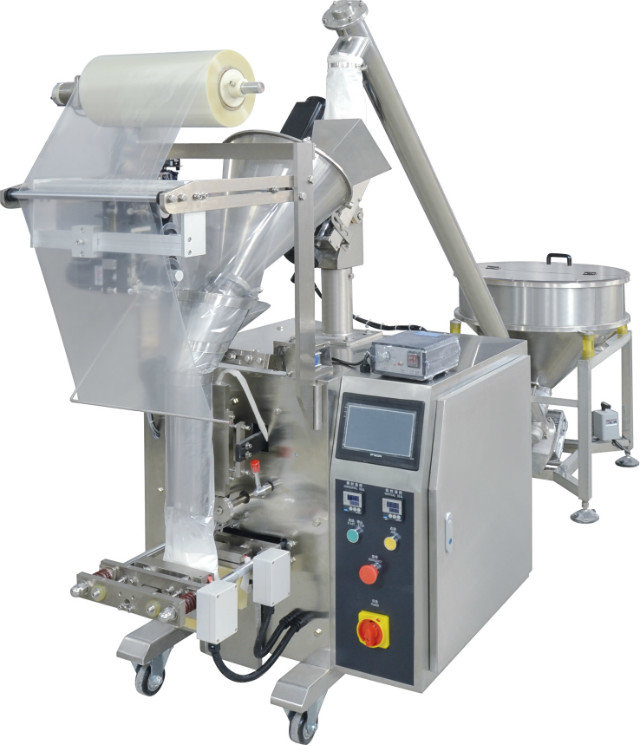

small powder machine
名称Name |
边封式粉剂包装机 Powder Packing Machine |
边封式颗粒包装机 Granule Packing Machine |
边封式液体包装机 Liquid Packing Machine |
边封式链斗包装机 Bucker Packing machine |
型号Model |
TY-320/380G |
TY-320/380G |
TY-320/380L |
TY-320/380X |
机箱材质Machine Material |
不锈钢Stainless Steel |
不锈钢Stainless Steel |
不锈钢Stainless Steel |
不锈钢Stainless Steel |
计量范围(Measuring Range) |
1~500ml |
1~500ml |
1~500ml |
1~500ml |
包装速度(Packing Speed) |
30-75bags/min |
30-75bags/min |
30-75bags/min |
30-75bags/min |
切口(Notch) |
平切口/花纹连袋 Flat Notch/Pattern Cutting |
平切口/花纹连袋 Flat Notch/Pattern Cutting |
平切口/花纹连袋 Flat Notch/Pattern Cutting |
平切口/花纹连袋 Flat Notch/Pattern Cutting |
计量方式(Metering) |
螺杆计量(Screw Measuring) |
量杯计量(Cup Measuring) |
流体泵计量(Pump Measuring) |
流体泵计量(Pump Measuring) |
包装材料(Film Material) |
复合膜、铝膜(Composite film, Aluminum Foil) |
复合膜、铝膜、无纺布(Composite film, Aluminum Foil, Non-woven fabric) |
复合膜、铝膜(Composite film, Aluminum Foil) |
复合膜、铝膜(Composite film, Aluminum Foil) |
包装产品(Package Product) |
面粉、奶粉、咖啡粉、药粉等(Flour, Milk Powder, Coffee Powder, medicine powder, ect) |
砂糖、大米、茶叶等(Sugar, Rice, Tea, ect) |
酱体、洗发水、蜂蜜、水等(Sauce, Shampoo, Honey, Water, ect) |
五金、玩具、配件等(Hardware,toy,spare part,ect) |
功率(Power) |
1.2KW |
1.2KW |
1.2KW |
1.2KW |
电压(Voltage) |
220V/380V |
220V/380V |
220V/380V |
220V/380V |
机器尺寸(Dimension) |
(L)700×(W)600×(L)1700mm |
(L)700×(W)600×(L)1700mm |
(L)700×(W)600×(L)1700mm |
(L)700×(W)600×(L)1700mm |
重量(Weight) |
180KG |
180KG |
180KG |
180KG |
FEATURE:
Whole machine controlled by software, convenient for function adjusting and technical upgrade
