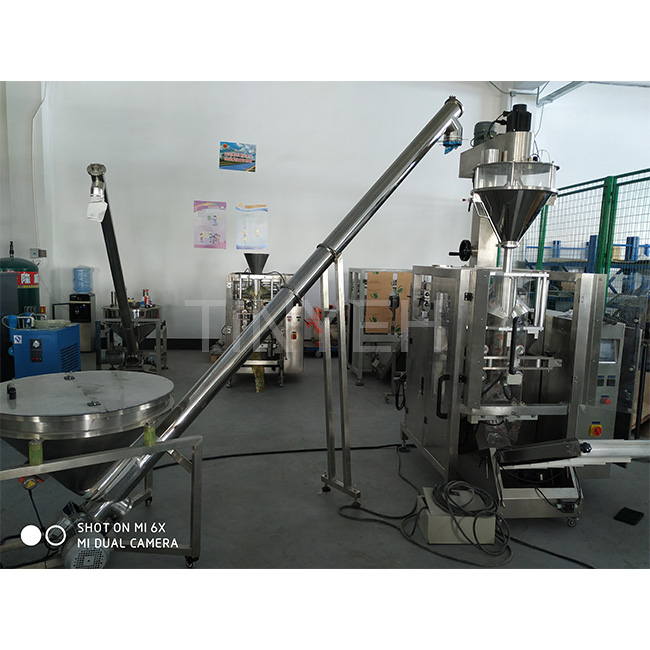

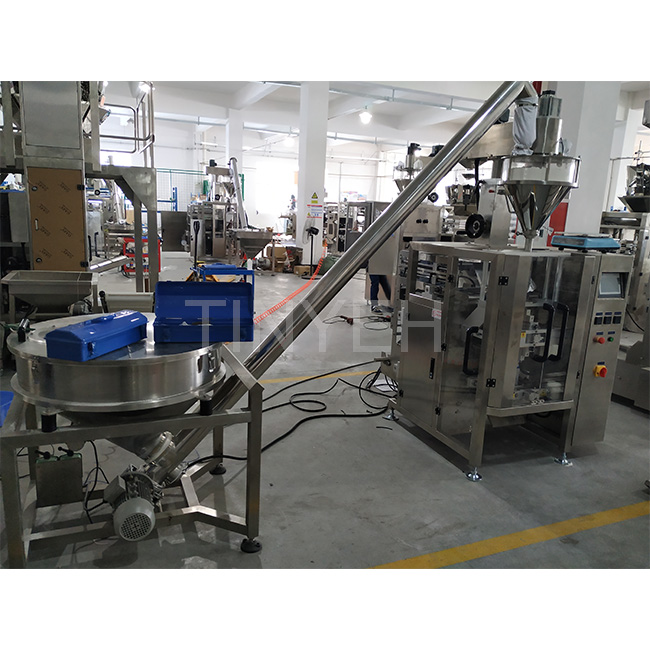

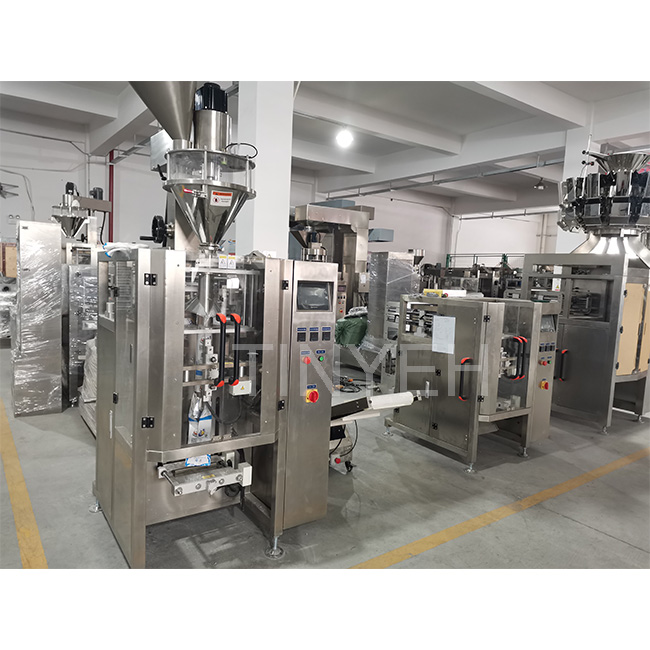

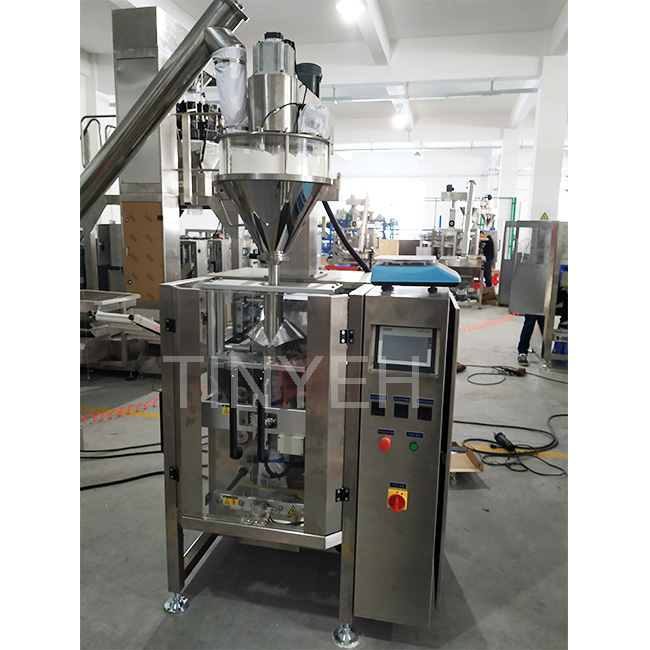

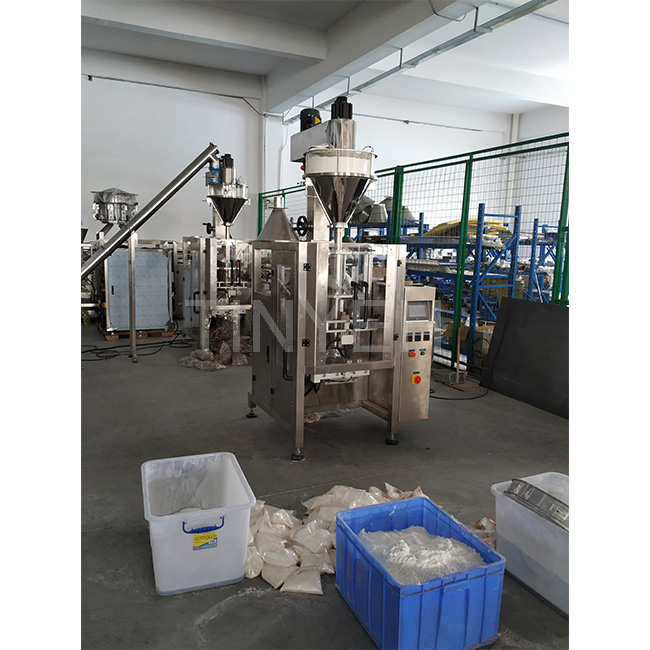

Flow powder vertical form fill sealing packaging machine

Powder Packing Machine is suitable for powder product, such as milk powder, flour, spice powder, coffee powder, putty powder.

Min.order:1 set

Warranty:24 month

Package:Wooden box

Shipping: Ocean freight, Land freight, Air freight

We are a professional vertical powder packing machine manufacturer in China, our powder packing machine is suitable for powder product, such as milk powder, flour, spice powder, coffee powder, putty powder.



vertical weighing packaging machine manufacturers

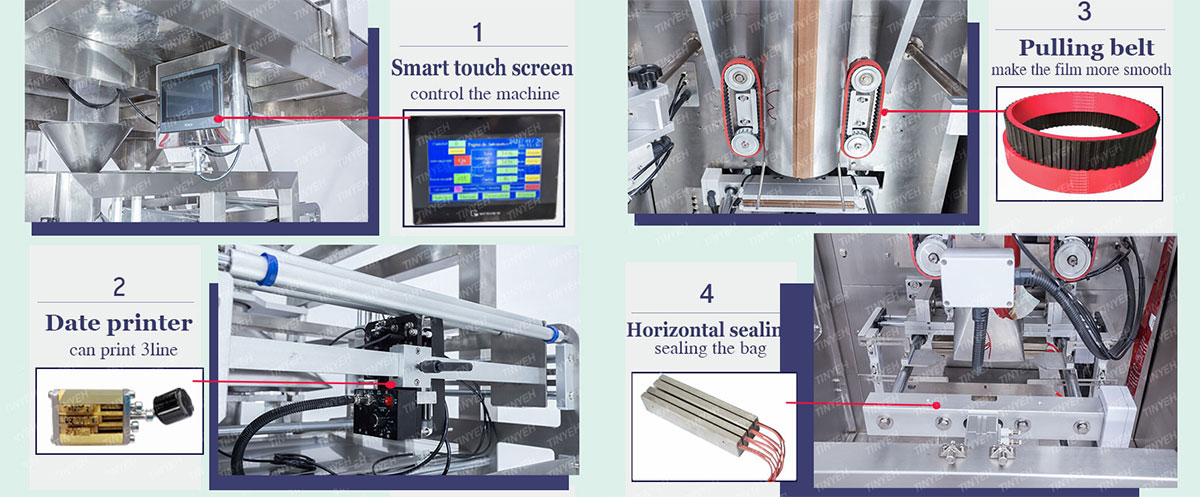

Function and Structure Characteristics

  1. The powder packing machine can complete the whole production process automatically of  feeding, measuring, filling and bag making, date printing, product output.
  2. Design of machine structure is compact, rational, stable performance, easy operate and maintenance.
  3. It is suitable to pack powder product which is easy to flow or with poor fluidity.
  4. Adopted screw conveyor with open cabin, easy to clean and combined of safe and clean standard requirement.
  5. Adopt screw conveyor with separated mixing operation, equipped with servo-motor controlling system, this machine enjoys the advantage of agility, high accuracy and stable function.



Vertical Form Fill Seal Machine factory

Model

TY-420

TY-520

TY-720

TY-900

TY-1050

TY-1200

Film Thickness

0.04-0.08mm

0.04-0.12mm

0.04-0.12mm

0.04-0.12mm

0.04-0.12mm

0.04-0.12mm

Bag Length

80-300mm

80-350mm

100-500mm

100-600mm

100-800mm

100-1000mm

Bag Width

60-200mm

100-250mm

180-350mm

260-430mm

290-505mm

290-580mm

Film Material

OPP/CPP OPP/CE PET/PE NILO/PE PE

Film Roll Diameter

Max.320mm

Max.400mm

Pakaging Rate

5-60bag/min

5-60bag/min

5-55bag/min

5-20bag/min

5-20bag/min

5-20bag/min

Film Width

Max.420mm

Max.520mm

Max.720mm

Max.900mm

Max.900mm

Max.1200mm

Power

3KW

4KW

5KW

6KW

7KW

7.5KW

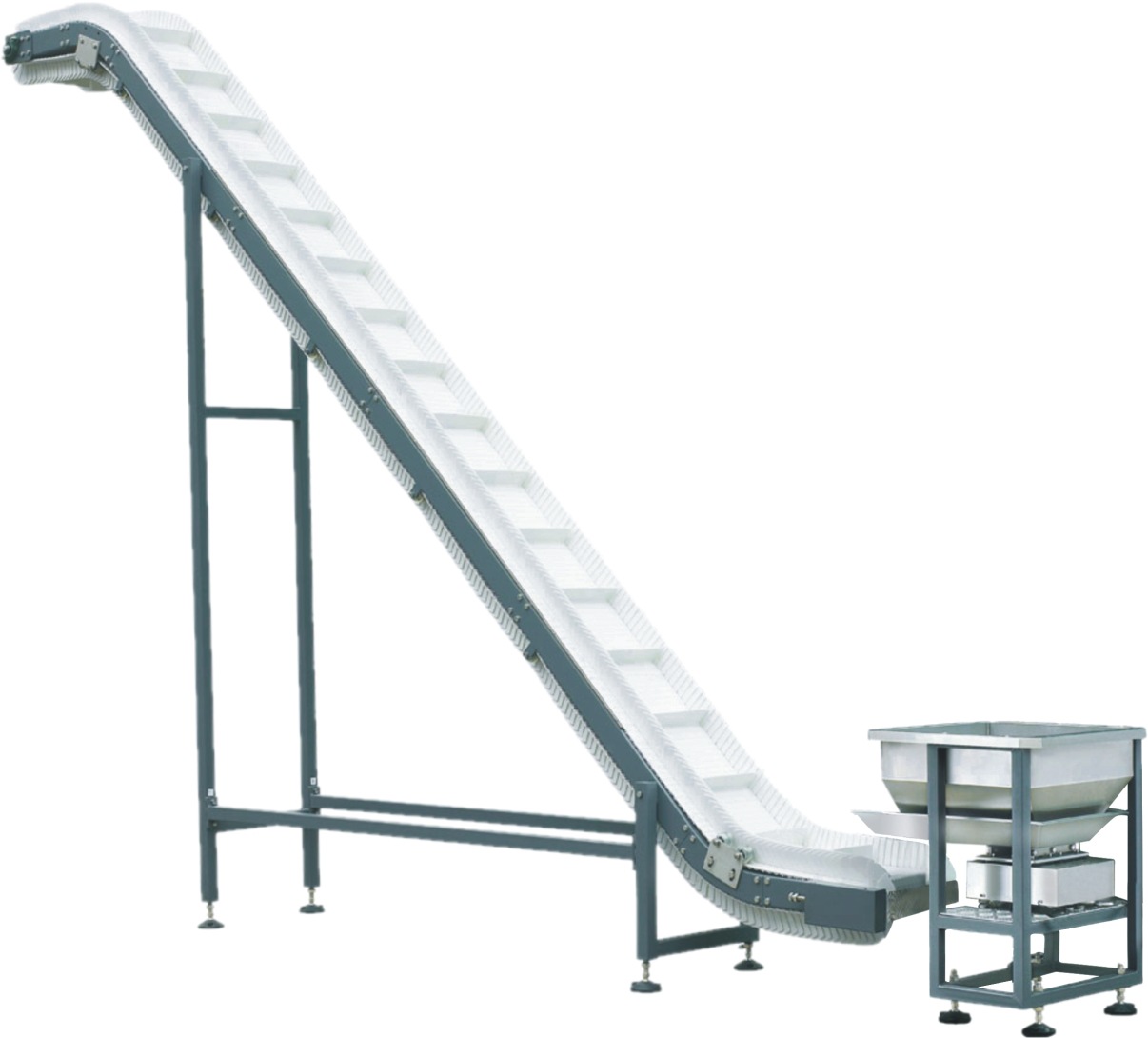

Inclined Belt Conveyor Machine

SPECIFICATION

型号(Model)

TY-X55

功率(Power)

0.55~1.1KW

电压(Voltage)

220V/380V

输送量(Conveying Capacity)

2~6m³/h

毛重(Gross Weight)

500KG

FEATURE:

  1. The conveyor can be used with the electronic combination scale, and the control circuit is controlled by electric eyes to realize automatic feeding and stopping of the automatic feeding system.

  2. The conveyor is made of stainless steel or carbon steel (painted, color can be customized); size and specification can be customized according to customer requirements.

APPLICATION:

Suitable for delivery of fragile or non-fragile product, such as vegetable, potato chips, shrimp strips, hardware, medicine.

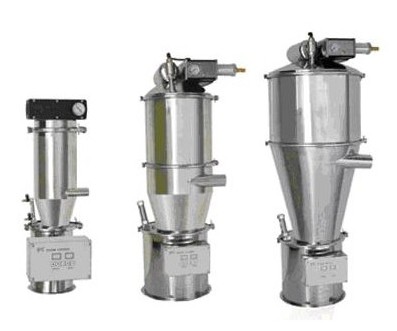

Vacuum Feeding Machine

Vacuum feeding machine is the use of compressed air through the vacuum generator to produce high vacuum conveying of material without mechanical vacuum bump.
The advantage of vacuum feeding machine is Simple structure, small size, maintenance-free, low noise, easy to control, eliminate static electricity and meet the GMP requirements.
The high vacuum generated by the vacuum generator prevents the layered material from being transported, ensuring the uniformity of the composition of the mixture.
The preferred equipment for mechanical automatic feeding of tablet presses, capsule filling machines, dry granulators, packaging machines, pulverizers, vibrating screens, etc.

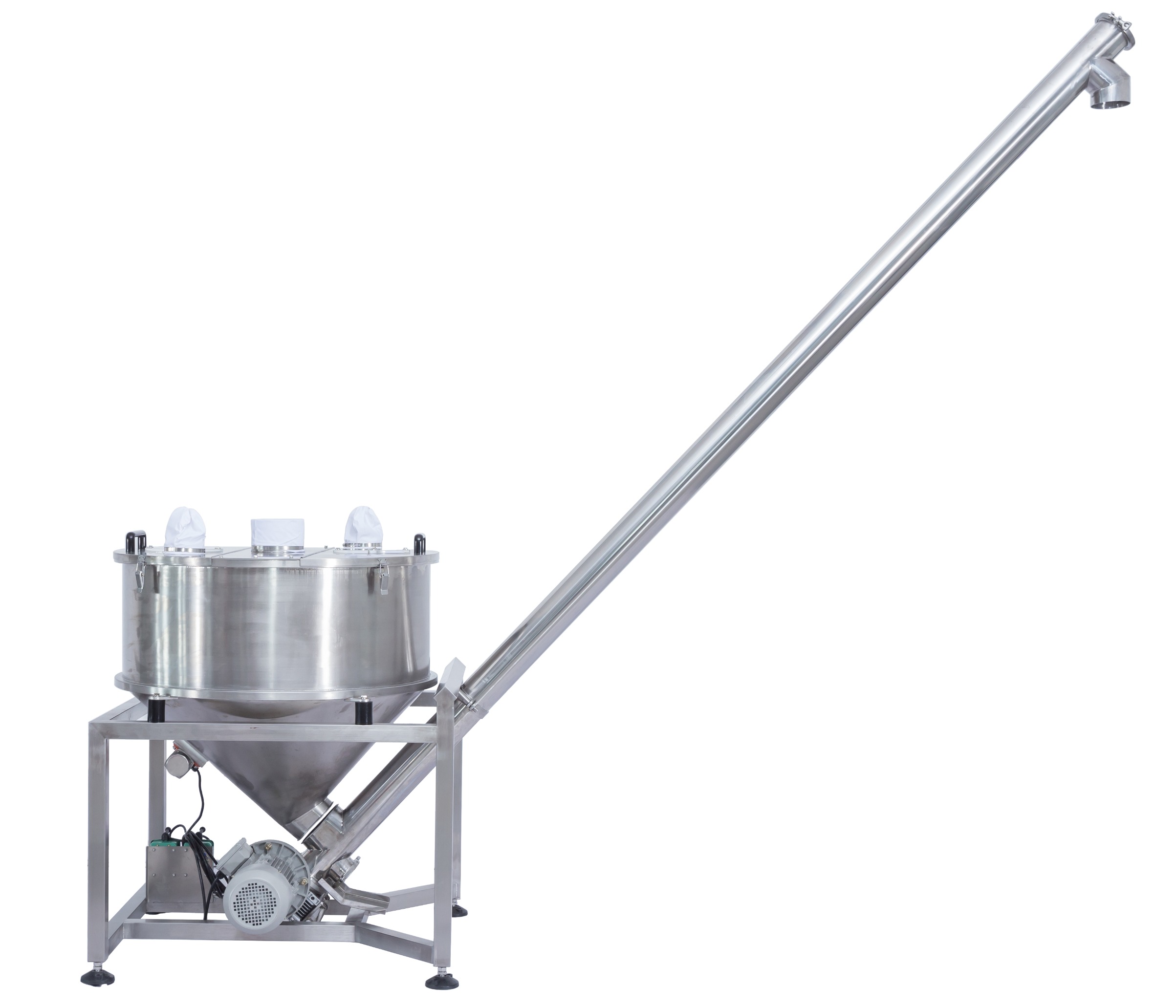

Automatic Screw Conveyor Machine

SPECIFICATION

输送量(Conveying Capacity)

1~10ton/h

提升高度Lifting Height)

3~20m

提升量(Lifting Volume)

5m³/h

尺寸(Dimension)

按客户要求制作

(according to customer’s requirement)

材质(Material)

不锈钢或碳钢(Stainless Steel or Carbon Steel)

功率(Power)

750KW

电压(Voltage)

220V/380V



FEATURE

It adopts screw feeding and vibrating hopper. It is suitable for conveying various powder particles and small particle materials.



Finish Output Conveyor

Used for devliery finsihed product to testing equipment or packaging platform.

Specification
Delivery Value: 1m3/h
Voltage: 220V
Dimension: Customized

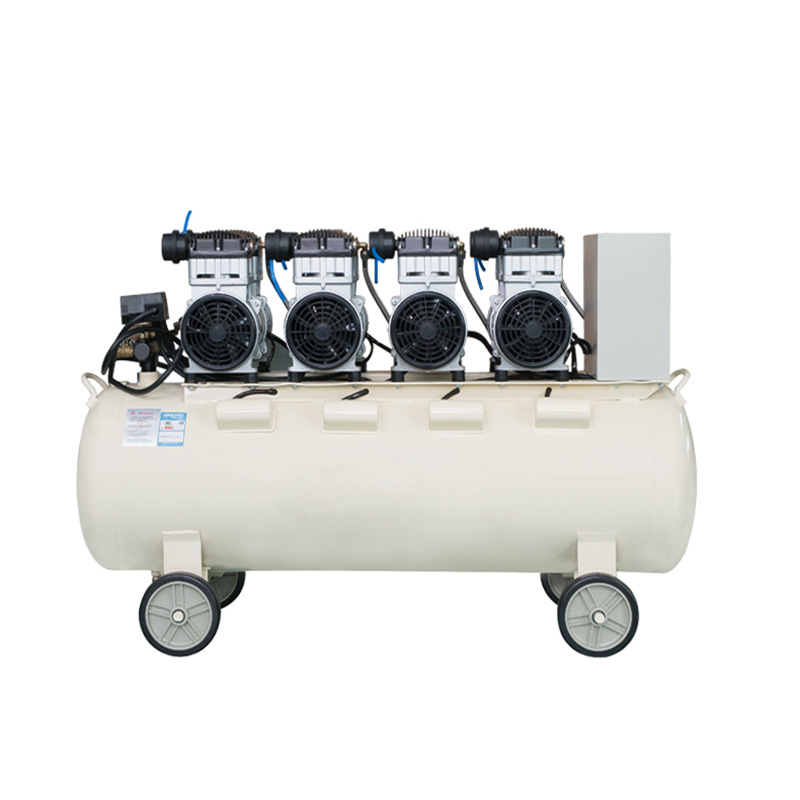

AIR COMPRESSOR

SPECIFICATION

型号 MODEL

TY-75

TY-50

TY-30

转速

1380r/min

1380r/min

1380r/min

外形尺寸 DIMENSION

1340×470×990mm

1050×410×810mm

1050×410×810mm

公称容积流量VOLUME FLOW

560L/min

420L/min

300L/min

功率POWER

7.5KW

5KW

3.3KW

储气罐容积COMPACITY

160L

100L

100L

整机重量WEIGHT

132KG

115KG

1061KG



Round Rotating Table



FEATURE

1.The rotary table is used to collect the materials packaging machine out of the packaged food, wait for further packaging operation and the finished products with the packing machine by belt conveyor connection.

2.The 304 stainless steel forging machine by forming, solid, safety, health.

3.The speed can be adjusted according to the labor speed.



Specifications

SPECIFICATION直径Diameter

1100mm

表面Surface

凹面(Concave)

电压Voltage

220V, 50HZ

功率Power

0.37KW

尺寸Dimension

(L)1100×(W)1100×(H)850mm

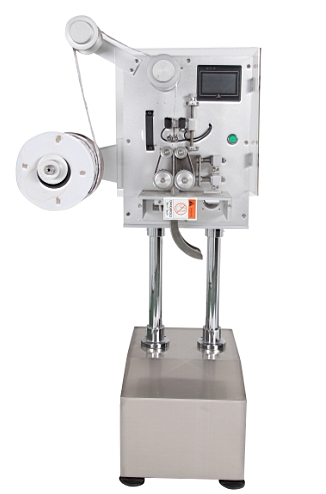

Desiccant automatic bag feeding machine

Specifications

AUTOMATIC DESICCANT DISPENSE料包规格Pouch Length

20-150mm

投包速度 Speed

20-160bags/min

功率 Power

0.35KW 220V 50HZ

重量 Weight

55kg

机器尺寸 Machine Dimension

600×750×1500





METAL DETECTOR

FEATURE

  1. The body is made of stainless steel, which is beautiful in appearance, dust-proof and easy to clean.
  2. Analog design is combined with digital design, greatly improving reliability and intelligence of the machine.
  3. Adopt new touch screen input and large scale integrated circuit. CPU collects analog signals and converts into digital.
  4. Adopt user-friendly interface design, ensuring that the entire operation is simple, human-machine interface can be seen at a glance and all commands can be done by operating the interface.
  5. Dynamically and visually display the dynamic test results of Fe and SUS, the sensitivity of current setting.



APPLICATION

Apply to detect metal leakage fallen in material and goods, such as iron, copper, lead, stainless steel, ect. And the sorting device automatically removes products that do not meet the standard.



SPECIFICATION

型号Model

TY-100

TY-150

TY-200

TY-250

TY-300

检测窗口高度Detecting Window Height

100mm

150mm

200mm

250mm

300mm

有效检测高度Effective Detecting Width(Max.)

400mm

400mm

400mm

400mm

400mm

Fe

0.8~1.0m

1.0~1.2mm

1.2~1.5mm

1.5~2.0mm

2.0~2.5mm

304SUS

1.5~2.0mm

2.0~2.3mm

2.3~2.5mm

2.5~3.0mm

3.0~3.5mm

机架材质Frame Material

不锈钢 Stainless Steel





Check Weigher

型号(Model)

TY-1200g

TY-3000g

称重范围(Weighing Range)

1-1200g

3-3000g

最小显示值(Minimum Scale)

0.1g

0.1g

最高分选精度3σ(Accuracy)

±0.2-0.3

±1

最大分选速度(Throughout)

160

100

皮带速度(Belt Speed)

0-96

0-80

称重段尺寸(Belt Dimension)

400*220

500*300

剔除方式(Reject mechanism)

吹气式/摆臂式/推杆式 (Air Blower/Arm/Pusher)

可选装置(Optional Device)

声光报警灯,网络接口,反馈信号(Acoustic and light alarm lamp, network interface, feedback signal)

电压(Voltage)

220VAC ±10%, 50/60HZ

距地面高度

(Height from ground)

500-1000mm(可定制)

500-1000mm(customized)



FEATURE:

  1. Design to increase reliability and efficiency of your product
  2. High speed and precision with high speed A/D sampling controller
  3. Easy panel operation 10 inch interface touch screen
  4. Strong stainless steel structure, water proof model is optional
  5. Various preset program, easy and quick products changeover
  6. Easy release drive unit simplify daily maintenance and easy cleaning
  7. Speed adjustable by variable frequency motor
  8. Zero tracking: Zero by manual or automatic, dynamic zero tracking available



APPLICATION

The check weigher is used to check the products are qualified with preset weight. Widely be used in many fields like electronic, pharmacy, food, beverage, health treatment, daily use chemical, agriculture, and light industry ect.
