Down Paper Flow Wrapping Packing Sealing Machine

Tinyeh is a professional flow wrapping packing sealing machine factory in China, our flow wrapping machine is  suitable for packing soft, sticky or multi pack products such as towel, tissue, noodles, egg rolls, sausages, ice lolly, ice cream bar, soft candy, cutlery, vegetables, etc.

Min.order:1 set

Warranty:24 month

Package:Wooden box

Shipping: Ocean freight, Land freight, Air freight

Tinyeh is a professional flow wrapping packing sealing machine factory in China, our flow wrapping machine is  suitable for packing soft, sticky or multi pack products such as towel, tissue, noodles, egg rolls, sausages, ice lolly, ice cream bar, soft candy, cutlery, vegetables, etc.



Flow Wrapping Packing Sealing Machine factory

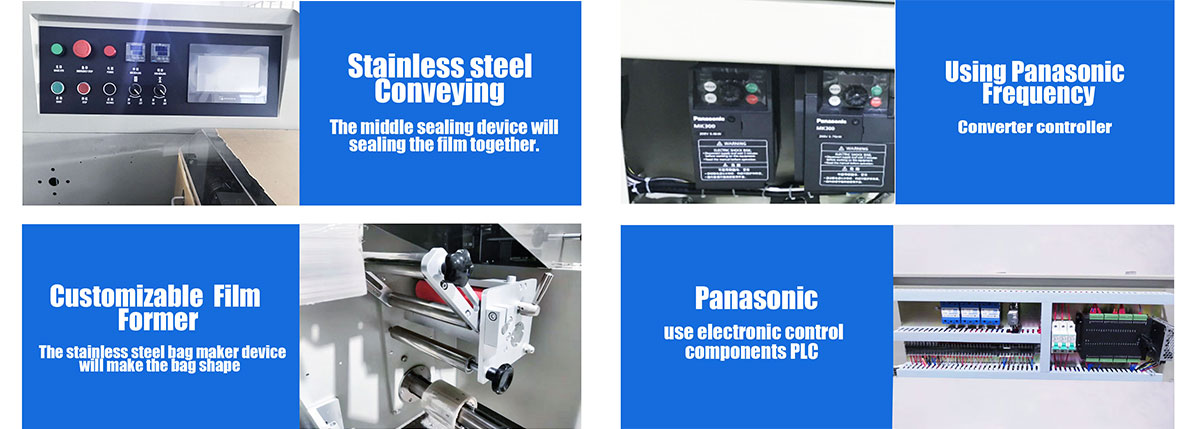

FEATURE

  1. All parts in contact with the material are made of 304 stainless steel, only the machine support part and the cylinder front and rear fixed parts 304 stainless steel.
  2. Standard fluorine rubber sealing ring, which is acid and alkali resistant, corrosion resistant, high temperature resistant; soft connecting gasket using silica gel or PTFE material.
  3. Filling volume and filling speed is adjustable, with anti-drip filling head.
  4. All machines can be driven purely pneumatically without any electrical components.

Kindly Reminder:

As one of the leading flow wrapping packing sealing machine manufacturers in China, we have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.



Flow Wrapping Packing Sealing Machine manufacturers

Model

TY-250X

TY-350X

TY-450X

TY-600X

TY-700X

Max. Width of Film

Max.250mm

Max.350mm

Max.450mm

Max.600mm

Max.700mm

Bag length

65-190 or 120-280mm

120-450mm

120-500mm

120-600mm

Bag width

30-110mm

50-160mm

50-180mm

100-280mm

100-330mm

Product height

Max.45mm

Max.65mm

Max.80mm

Max.110mm

Film roll diameter

Max.320mm

Packaging rate

40-230bag/min

40-150bag/min

20-150bag/min

20-130bag/min

Power

220V 50/60Hz 2.4KW

220V 50/60Hz 2.8KW

Machine size

(L)3920x(W)670

x(H)1320mm

(L)4020x(W)720

x(H)1320mm

(L)4020x(W)820

x(H)1450mm

(L)4020x(W)920

x(H)1460mm

(L)4020x(W)980

x(H)1480mm

Machine quality

About 500kg

About 550kg

About 650kg

About 680kg

About 720kg

After receiving your inquiry,We will send you the quotation as soon as possible.
