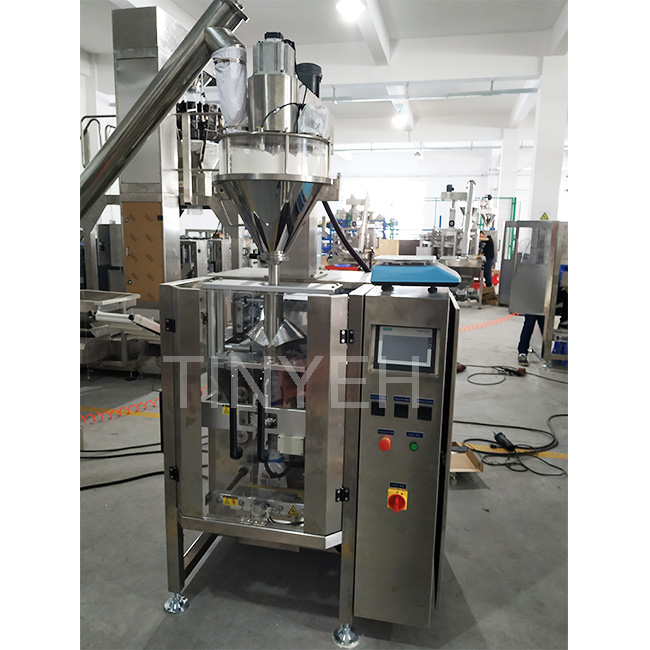

Automatic vertical chemical powder packing machine

Powder Packing Machine is suitable for powder product, such as milk powder, flour, spice powder, coffee powder, putty powder.

Min.order:1 set

Warranty:24 month

Package:Wooden box

Shipping: Ocean freight, Land freight, Air freight

Powder Packing Machine is suitable for powder product, such as milk powder, flour, spice powder, coffee powder, putty powder.

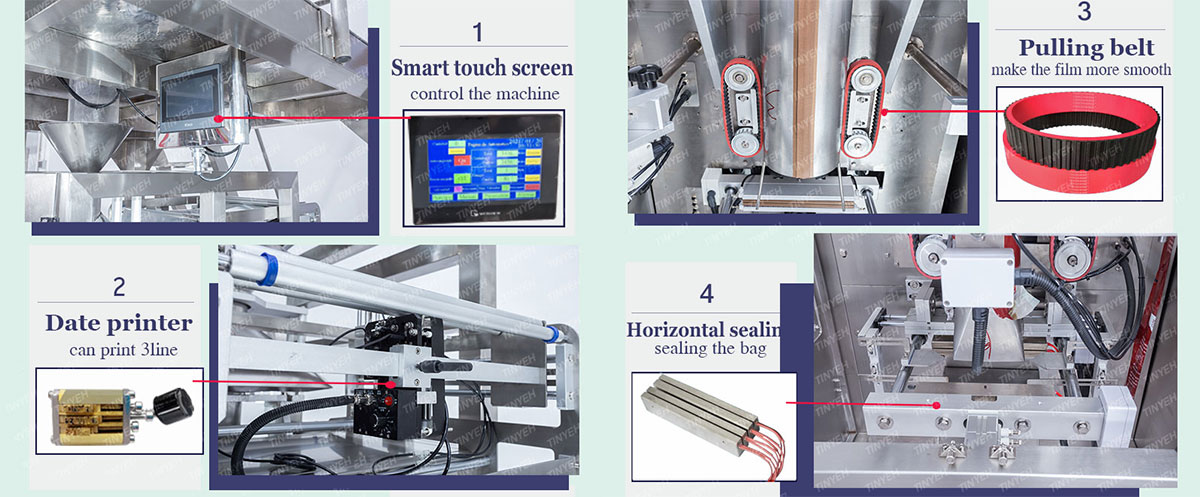

Function and Structure Characteristics

  1. The powder packing machine can complete the whole production process automatically of  feeding, measuring, filling and bag making, date printing, product output.
  2. Design of machine structure is compact, rational, stable performance, easy operate and maintenance.
  3. It is suitable to pack powder product which is easy to flow or with poor fluidity.
  4. Adopted screw conveyor with open cabin, easy to clean and combined of safe and clean standard requirement.
  5. Adopt screw conveyor with separated mixing operation, equipped with servo-motor controlling system, this machine enjoys the advantage of agility, high accuracy and stable function.
  6.



Model

TY-420

TY-520

TY-720

TY-900

TY-1050

TY-1200

Film Thickness

0.04-0.08mm

0.04-0.12mm

0.04-0.12mm

0.04-0.12mm

0.04-0.12mm

0.04-0.12mm

Bag Length

80-300mm

80-350mm

100-500mm

100-600mm

100-800mm

100-1000mm

Bag Width

60-200mm

100-250mm

180-350mm

260-430mm

290-505mm

290-580mm

Film Material

OPP/CPP OPP/CE PET/PE NILO/PE PE

Film Roll Diameter

Max.320mm

Max.320mm

Max.320mm

400mm

400mm

400mm

Pakaging Rate

5-60bag/min

5-60bag/min

5-55bag/min

5-20bag/min

5-20bag/min

5-20bag/min

Film Width

Max.420mm

Max.520mm

Max.720mm

Max.900mm

Max.900mm

Max.1200mm

Power

3KW

4KW

5KW

6KW

7KW

7.5KW

After receiving your inquiry,We will send you the quotation as soon as possible.
