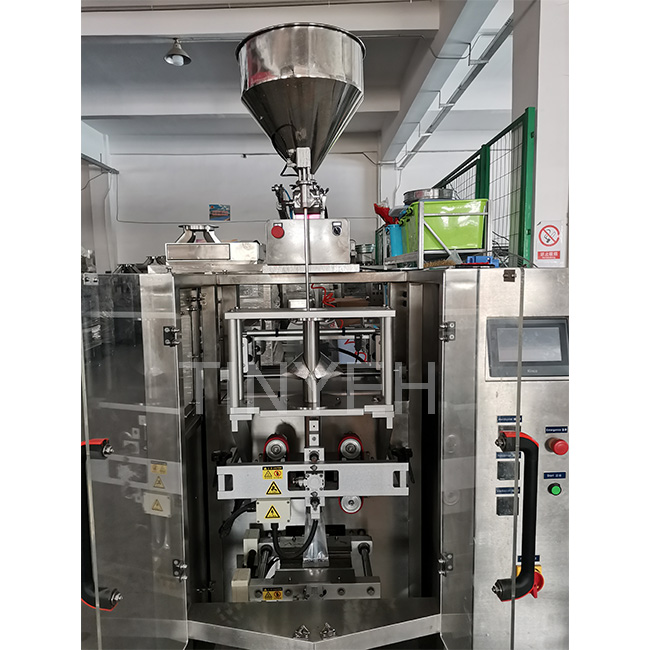

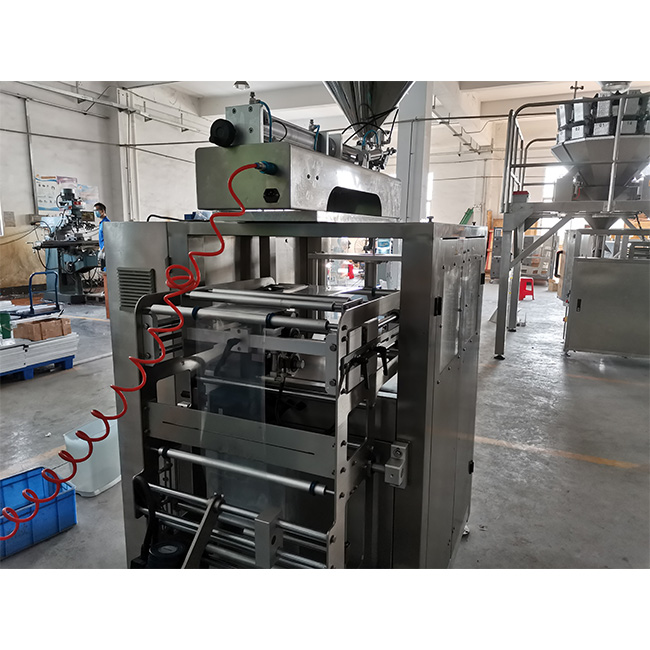

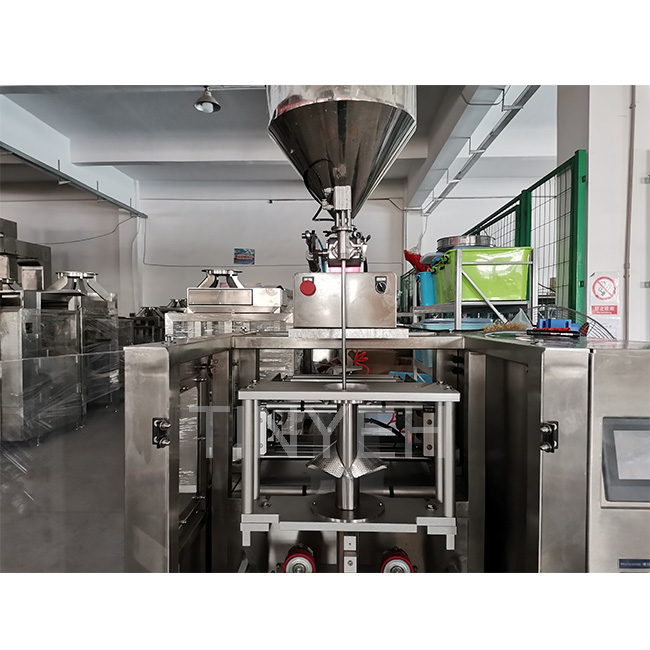

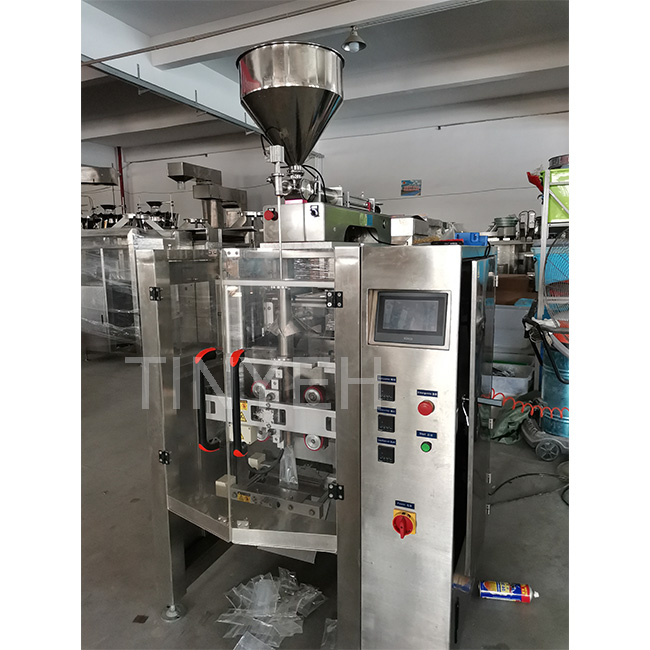

Automatic sachet sealing food liquid bag milk packing machine

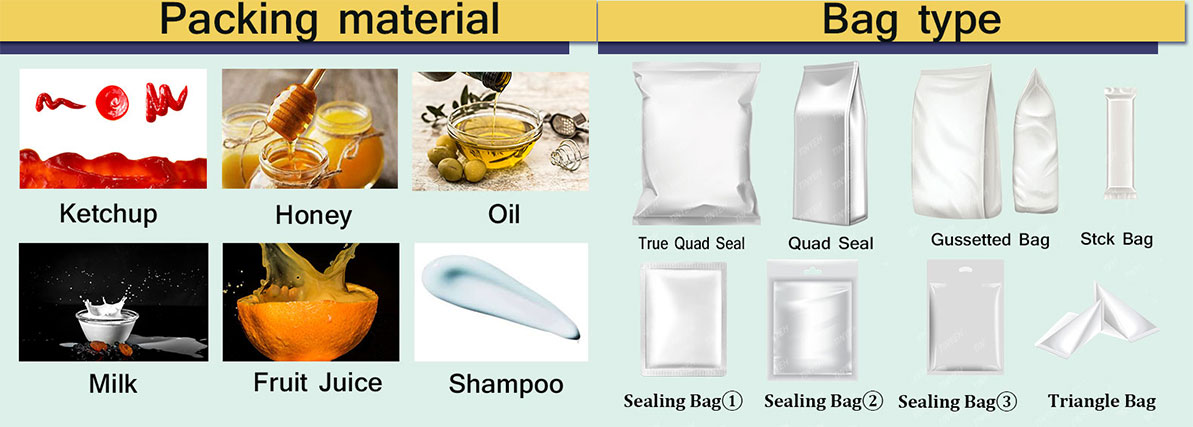

Suitable for packaging of liquid, sauce, such as juice, milk, shampoo, tomato sauce.

Min.order：1 set

Warranty：24 month

Package：Wooden box

Shipping： Ocean freight, Land freight, Air freight

Inquiry

Suitable for packaging of liquid, sauce, such as juice, milk, shampoo, tomato sauce.

FEATURE

All parts in contact with the material are made of 316 stainless steel, only the machine support part and the cylinder front and rear fixed parts 304 stainless steel.
Standard fluorine rubber sealing ring, which is acid and alkali resistant, corrosion resistant, high temperature resistant; soft connecting gasket using silica gel or PTFE material.
Filling volume and filling speed is adjustable, with anti-drip filling head.
All machines can be driven purely pneumatically without any electrical components.

Model	TY-420	TY-520	TY-720	TY-900	TY-1050	TY-1200
Film Thickness	0.04-0.08mm	0.04-0.12mm	0.04-0.12mm	0.04-0.12mm	0.04-0.12mm	0.04-0.12mm
Bag Length	80-300mm	80-350mm	100-500mm	100-600mm	100-800mm	100-1000mm
Bag Width	60-200mm	100-250mm	180-350mm	260-430mm	290-505mm	290-580mm
Film Material	OPP/CPP OPP/CE PET/PE NILO/PE PE
Film Roll Diameter	Max.320mm			Max.400mm
Pakaging Rate	5-60bag/min	5-60bag/min	5-55bag/min	5-20bag/min	5-20bag/min	5-20bag/min
Film Width	Max.420mm	Max.520mm	Max.720mm	Max.900mm	Max.900mm	Max.1200mm
Power	3KW	4KW	5KW	6KW	7KW	7.5KW
