As a leading liquid doypack machine factory in China, Tinyeh focuses on liquid doypack machine manufacture to meet various liquid packaging needs, such as sauce, juice, milk, shampoo, and tomato sauce.
Min.order:1 set
Warranty:24 month
Package:Wooden box
Shipping: Ocean freight, Land freight, Air freight
Tinyeh is a professional juice packing machine factory in China, and our vertical liquid packing machines are suitable for packaging of liquid, sauce, such as juice, milk, shampoo, tomato sauce.

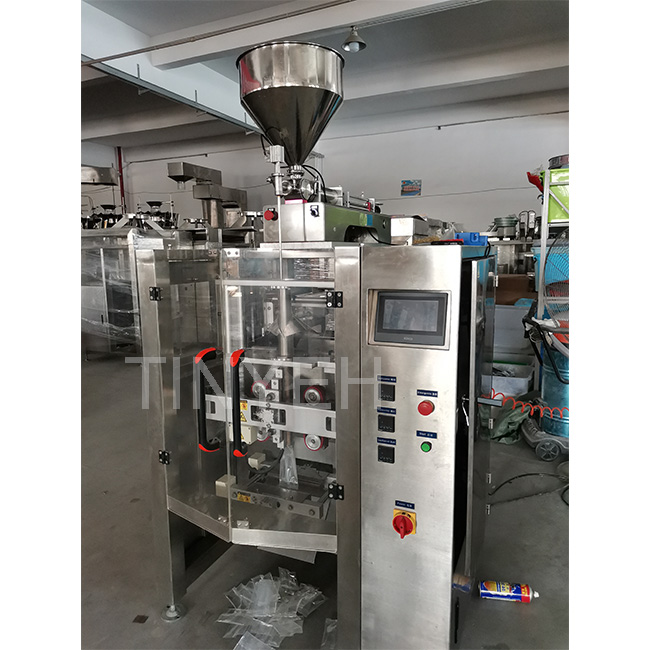

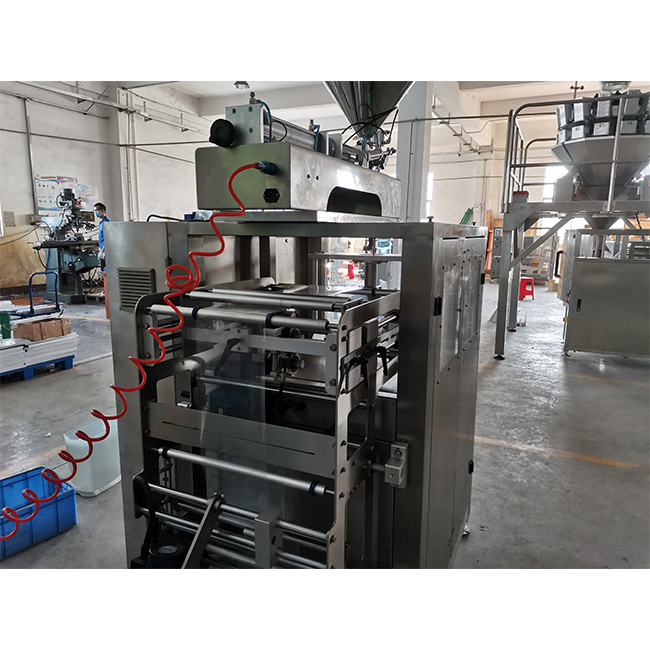

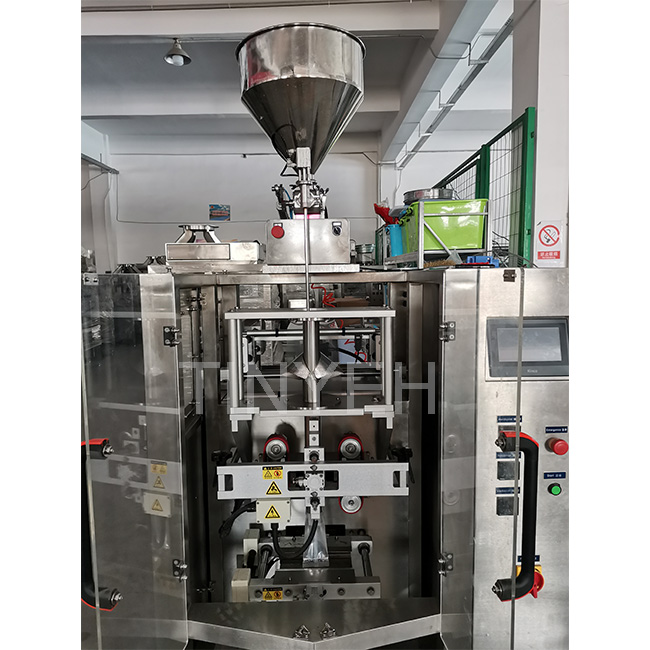

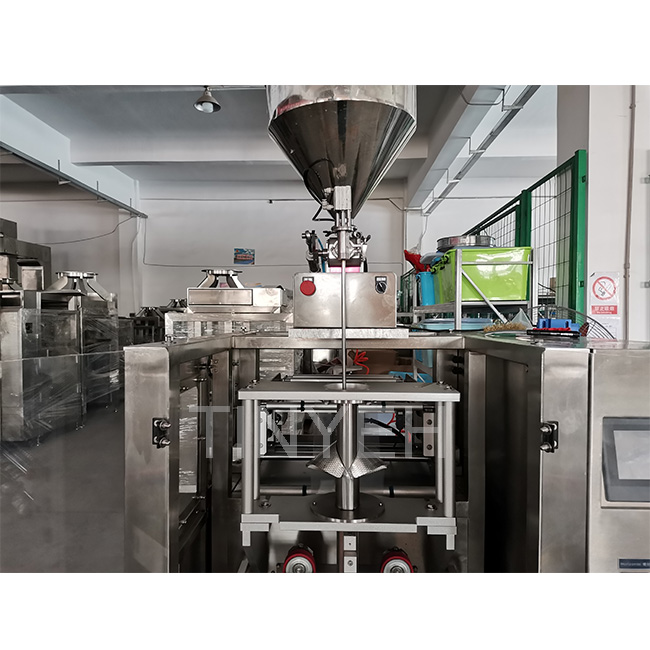

The Automatic Juice Liquid Vertical Packing Machine is an advanced solution for efficiently packaging liquid products. Designed for high precision and speed, this machine is widely used in the food and beverage industry. With a compact design and cutting-edge technology, it offers an excellent choice for businesses seeking to enhance production capacity while maintaining product quality.

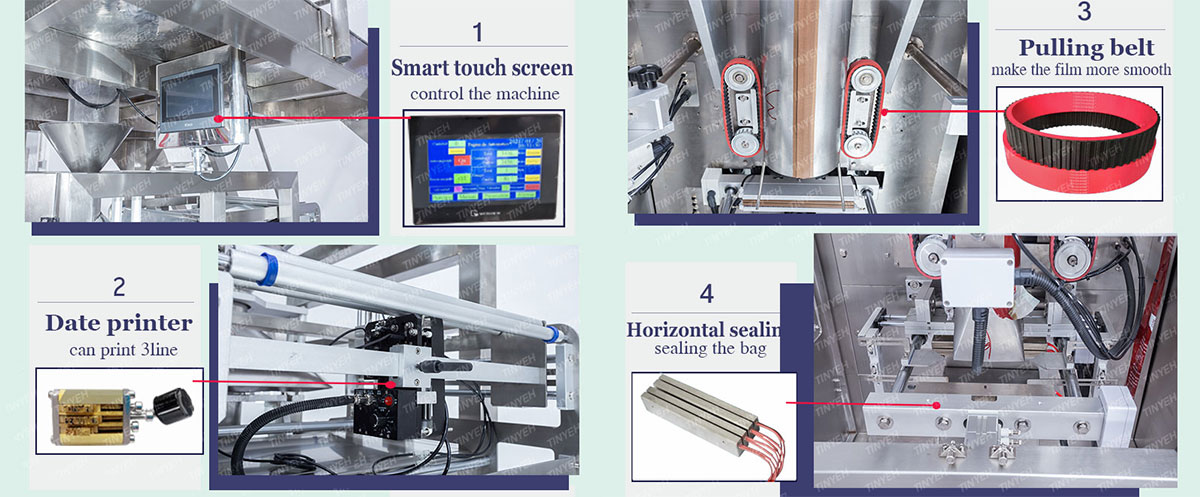

This machine comes equipped with features such as automatic filling, sealing, and cutting, ensuring seamless operation and reducing labor costs. It supports a variety of pouch sizes and materials, making it versatile for various packaging needs. Whether you’re producing single-serving juice pouches or larger packs, the machine guarantees accurate filling and secure sealing to maintain freshness and prevent leakage.
● All parts in contact with the material are made of 316 stainless steel, only the machine support part and the cylinder front and rear fixed parts are 304 stainless steel.
● Standard fluorine rubber sealing ring, which is acid and alkali-resistant, corrosion-resistant, high temperature resistant; soft connecting gasket using silica gel or PTFE material.
● Filling volume and filling speed are adjustable, withan anti-drip filling head.
● All machines can be driven purely pneumatically without any electrical components.

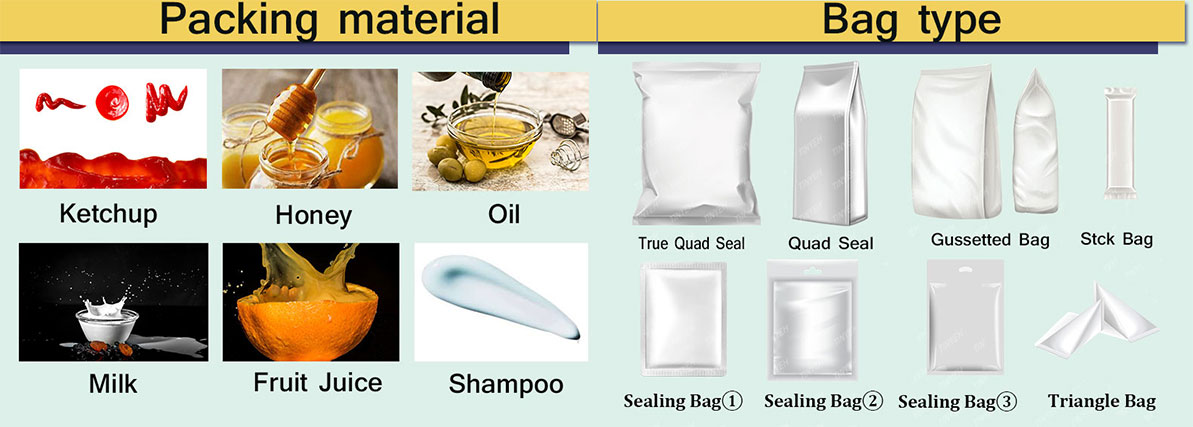

This machine is ideal for businesses that produce and distribute:
● Sauce
● Fruit juices
● Milk
● Shampoo
● Energy drinks
● Herbal liquids
● Liquid concentrates
As a reputable juice filling machine factory, we specialize in manufacturing high-quality packing solutions for liquid products. Our machines are tailored to meet the needs of small and large-scale production. With a focus on innovation and customer satisfaction, we are among the leading juice packing machine manufacturers in the industry.
We understand that cost is a significant consideration for businesses. Our machines are competitively priced, ensuring excellent value for money without compromising quality. For specific pricing details, feel free to contact us.
When working with us, you are partnering with a trusted juice filling machine manufacturer. We offer reliable machines, excellent after-sales service, and comprehensive support to help your business thrive.
Investing in an Automatic Juice Liquid Vertical Packing Machine from a trusted juice packing machine factory ensures efficiency, accuracy, and consistent quality in your packaging process. Whether you are starting a new production line or upgrading your existing setup, our machines are designed to meet your unique needs.
If you are looking for reliable juice filling machine manufacturers or exploring the juice pouch packing machine price, we are here to provide you with the best solutions. Get in touch with us today to learn more about our products and services.
Model |
TY-420 |
TY-520 |
TY-720 |
TY-900 |
TY-1050 |
TY-1200 |
Film Thickness |
0.04-0.08mm |
0.04-0.12mm |
0.04-0.12mm |
0.04-0.12mm |
0.04-0.12mm |
0.04-0.12mm |
Bag Length |
80-300mm |
80-350mm |
100-500mm |
100-600mm |
100-800mm |
100-1000mm |
Bag Width |
60-200mm |
100-250mm |
180-350mm |
260-430mm |
290-505mm |
290-580mm |
Film Material |
OPP/CPP OPP/CE PET/PE NILO/PE PE |
|||||
Film Roll Diameter |
Max.320mm |
Max.400mm |
||||
Pakaging Rate |
5-60bag/min |
5-60bag/min |
5-55bag/min |
5-20bag/min |
5-20bag/min |
5-20bag/min |
Film Width |
Max.420mm |
Max.520mm |
Max.720mm |
Max.900mm |
Max.900mm |
Max.1200mm |
Power |
3KW |
4KW |
5KW |
6KW |
7KW |
7.5KW |
Finish Output Conveyor
Used for devliery finsihed product to testing equipment or packaging platform.
Specification
Delivery Value: 1m3/h
Voltage: 220V
Dimension: Customized
AIR COMPRESSOR
SPECIFICATION
型号 MODEL |
TY-75 |
TY-50 |
TY-30 |
转速 |
1380r/min |
1380r/min |
1380r/min |
外形尺寸 DIMENSION |
1340×470×990mm |
1050×410×810mm |
1050×410×810mm |
公称容积流量VOLUME FLOW |
560L/min |
420L/min |
300L/min |
功率POWER |
7.5KW |
5KW |
3.3KW |
储气罐容积COMPACITY |
160L |
100L |
100L |
整机重量WEIGHT |
132KG |
115KG |
1061KG |
Round Rotating Table
FEATURE
1.The rotary table is used to collect the materials packaging machine out of the packaged food, wait for further packaging operation and the finished products with the packing machine by belt conveyor connection.
2.The 304 stainless steel forging machine by forming, solid, safety, health.
3.The speed can be adjusted according to the labor speed.
SPECIFICATION
直径Diameter |
1100mm |
表面Surface |
凹面(Concave) |
电压Voltage |
220V, 50HZ |
功率Power |
0.37KW |
尺寸Dimension |
(L)1100×(W)1100×(H)850mm |
METAL DETECTOR
FEATURE
APPLICATION
Apply to detect metal leakage fallen in material and goods, such as iron, copper, lead, stainless steel, ect. And the sorting device automatically removes products that do not meet the standard.
SPECIFICATION
型号Model |
TY-100 |
TY-150 |
TY-200 |
TY-250 |
TY-300 |
检测窗口高度Detecting Window Height |
100mm |
150mm |
200mm |
250mm |
300mm |
有效检测高度Effective Detecting Width(Max.) |
400mm |
400mm |
400mm |
400mm |
400mm |
Fe |
0.8~1.0m |
1.0~1.2mm |
1.2~1.5mm |
1.5~2.0mm |
2.0~2.5mm |
304SUS |
1.5~2.0mm |
2.0~2.3mm |
2.3~2.5mm |
2.5~3.0mm |
3.0~3.5mm |
机架材质Frame Material |
不锈钢 Stainless Steel |
Check Weigher
SPECIFICATION
型号(Model) |
TY-1200g |
TY-3000g |
称重范围(Weighing Range) |
1-1200g |
3-3000g |
最小显示值(Minimum Scale) |
0.1g |
0.1g |
最高分选精度3σ(Accuracy) |
±0.2-0.3 |
±1 |
最大分选速度(Throughout) |
160 |
100 |
皮带速度(Belt Speed) |
0-96 |
0-80 |
称重段尺寸(Belt Dimension) |
400*220 |
500*300 |
剔除方式(Reject mechanism) |
吹气式/摆臂式/推杆式 (Air Blower/Arm/Pusher) |
|
可选装置(Optional Device) |
声光报警灯,网络接口,反馈信号(Acoustic and light alarm lamp, network interface, feedback signal) |
|
电压(Voltage) |
220VAC ±10%, 50/60HZ |
|
距地面高度 (Height from ground) |
500-1000mm(可定制) 500-1000mm(customized) |
FEATURE:
APPLICATION
The check weigher is used to check the products are qualified with preset weight. Widely be used in many fields like electronic, pharmacy, food, beverage, health treatment, daily use chemical, agriculture, and light industry ect.
