Automatic ice sugar sachet packing filling sealing machine

High speed granule packing machine with measuring cups equipment, suitable for packing for all kinds of grain material, sheet material, strip material and abnormity material which such as candy, melon seeds, chips, peanuts, nutlet , preserved fruit, jelly, biscuit, confect, camphorball, currant, almond, chocolate, fibert, cornp.

Min.order:1 set

Warranty:24 month

Package:Wooden box

Shipping: Ocean freight, Land freight, Air freight

Tinyeh is a professional sachet packing machine factory in China, and our filling manufacturing machines are top-quality yet affordable, High speed granule packing machine with measuring cups equipment, suitable for packing for all kinds of grain material, sheet material, strip material and abnormity material which such as candy, melon seeds, chips, peanuts, nutlet , preserved fruit, jelly, biscuit, confect, camphorball, currant, almond, chocolate, fibert, cornp.



sachet packing machine factory

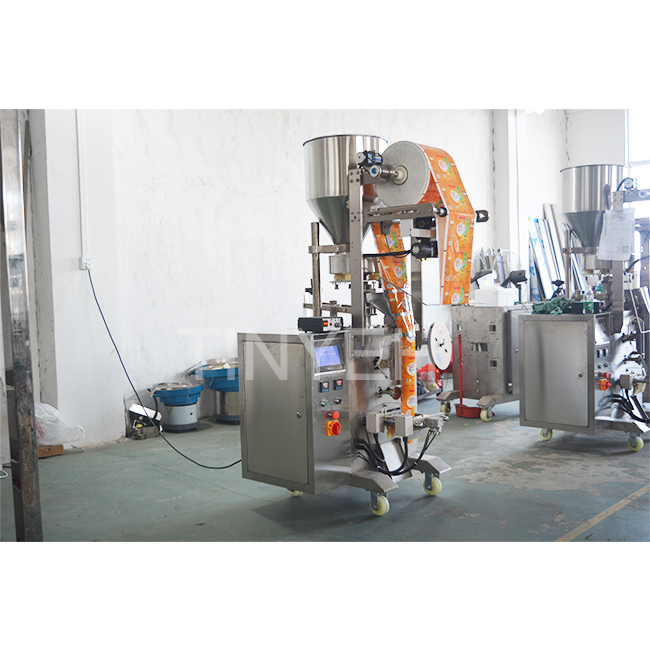

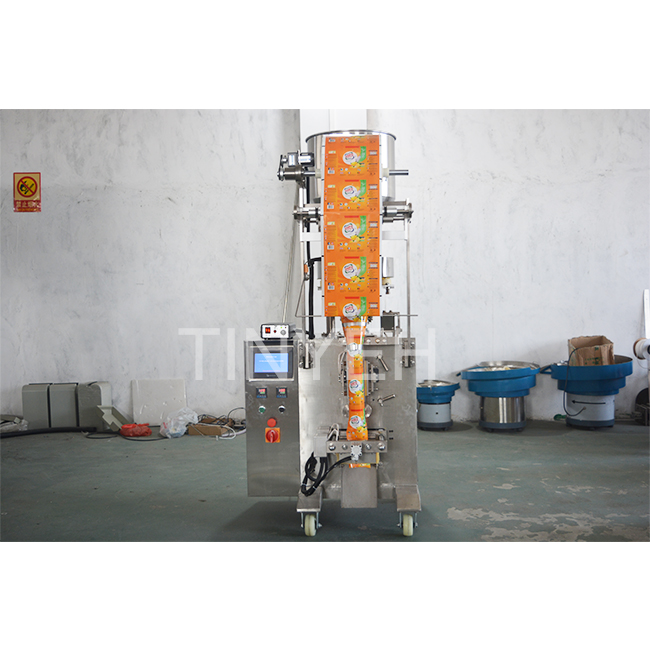

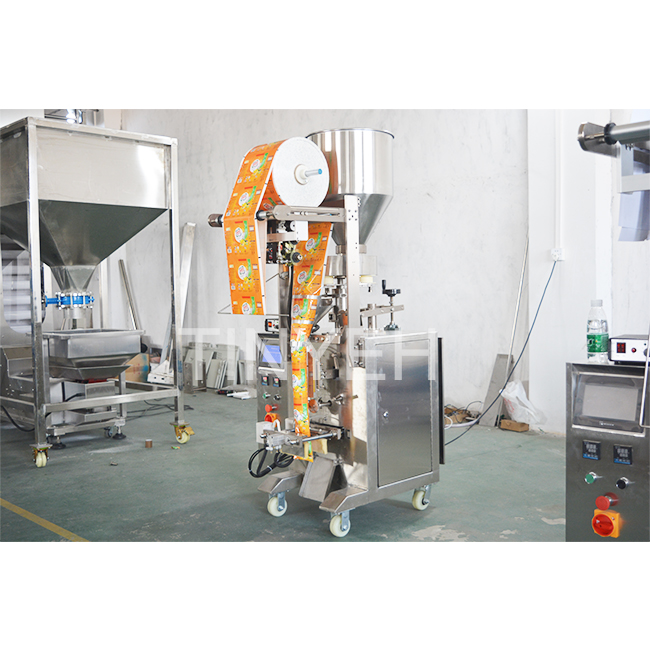

Automatic Sachet Packing Filling Sealing Machine



The automatic sachet packing filling sealing machine is a highly efficient solution designed for the automated packaging of various products. This machine is particularly well-suited for industries such as food, pharmaceuticals, and cosmetics, where precise filling and sealing are paramount.



Features

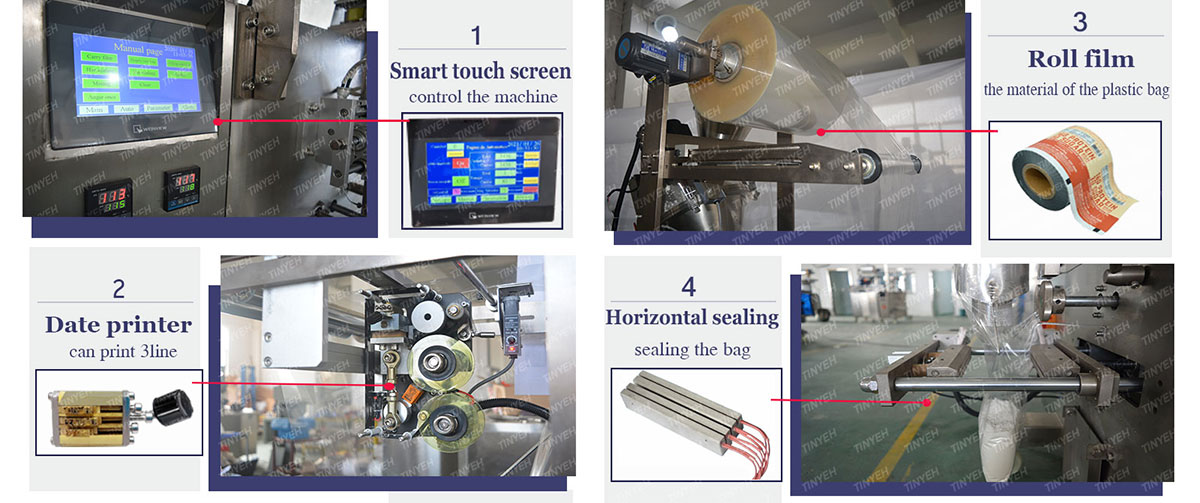

● Photoelectric eye control system, film pulling with step motor, stable performance, low noise With Fully automatic metering, filling, and bag making, date printing to product output, one-time completion.

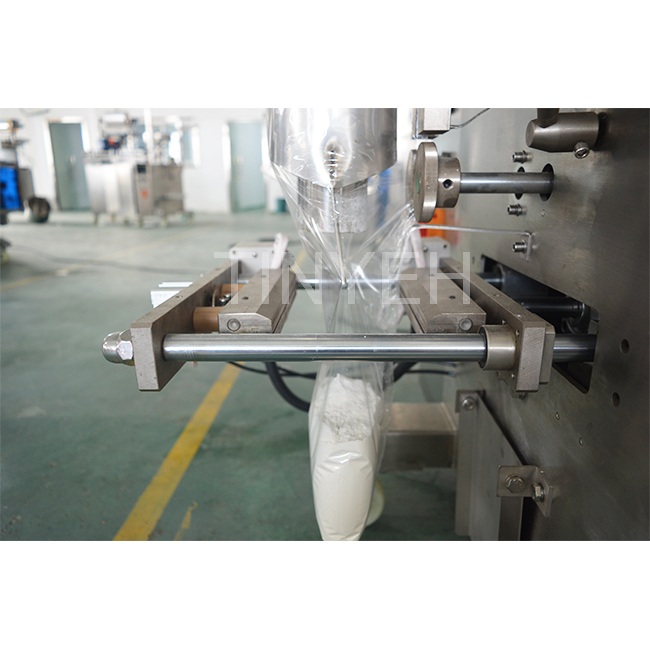

● According to the principle of spring pressing, pneumatic cutting, more stable for 5 welding-bag
● Positioning stop function, no sticking knife, no waste of film.
With a simple drive system, for stable operation and convenient maintenance.
● The whole machine contains rolled-by software, convenient for function adjusting and technical upgrade



Manufacturers and Suppliers



The automatic sachet packing filling sealing machine represents a critical investment for companies seeking to enhance their packaging processes. For businesses interested in acquiring this technology, several reputable vertical granule packing machine manufacturers or sachet filling and sealing machine manufacturers specialize in these machines. Many factories across regions like China produce vertical granule packing machines, ensuring competitive pricing and a variety of options suited for different applications.

Tinyeh is one of the sachet filling and sealing machine manufacturers. By leveraging the capabilities of specialized vertical granule packing machine manufacturers and sachet packing machine manufacturers, you can achieve greater efficiency and product integrity in your packaging operations. Contact us today to learn more about how our packaging machines can transform your business.



Type

TY-320

TY-380

TY-320S

Film width

120-320mm

180-380mm

80-220mm

Bag length

50-200mm

60-280mm

50-200mm

Bag width

50-150mm

60-180mm

30-100mm

Roll film diameter

Max.300mm

Max.320mm

Max.300mm

Packing rate

20-75bag/min (According to the product conditions)

Film thickness

0.04-0.07mm

0.04-0.12mm

Power

220V 50/60Hz 2.2KW

220V 50/60Hz 2.5KW

220V 50/60Hz 2.0KW

Machine quality

About 300KG

About 450KG

About 300KG

Finish Output Conveyor

Used for devliery finsihed product to testing equipment or packaging platform.


Specification
Delivery Value: 1m3/h
Voltage: 220V
Dimension: Customized



AIR COMPRESSOR

SPECIFICATION

型号 MODEL

TY-75

TY-50

TY-30

转速

1380r/min

1380r/min

1380r/min

外形尺寸 DIMENSION

1340×470×990mm

1050×410×810mm

1050×410×810mm

公称容积流量VOLUME FLOW

560L/min

420L/min

300L/min

功率POWER

7.5KW

5KW

3.3KW

储气罐容积COMPACITY

160L

100L

100L

整机重量WEIGHT

132KG

115KG

1061KG



Round Rotating Table



FEATURE

1.The rotary table is used to collect the materials packaging machine out of the packaged food, wait for further packaging operation and the finished products with the packing machine by belt conveyor connection.

2.The 304 stainless steel forging machine by forming, solid, safety, health.

3.The speed can be adjusted according to the labor speed.



SPECIFICATION

直径Diameter

1100mm

表面Surface

凹面(Concave)

电压Voltage

220V, 50HZ

功率Power

0.37KW

尺寸Dimension

(L)1100×(W)1100×(H)850mm

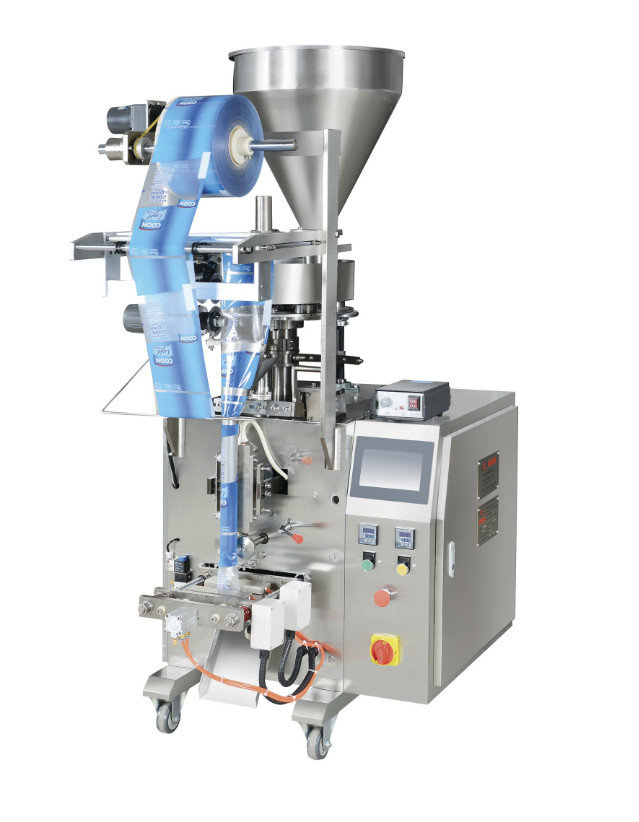

Granulator

FEATURE:

  1. Photoelectric eye control system, film pulling with step motor, stable performance, low noise
  2. With
  3. Fully automatic metering, filling and bag making, date printing to product output, one-time completion.
  4. According to the principle of spring pressing, pneumatic cutting, more stable for 5 welding-bag
  5. Positioning stop function, no sticking knife, no waste of film.
  6. With simple drive system, for stable operation and convenient maintenance.

Whole machine controlled by software, convenient for function adjusting and technical upgrade



SPECIFICATION

名称Name 边封式粉剂包装机 边封式颗粒包装机 边封式液体包装机 边封式链斗包装机
Powder Packing Machine Granule Packing Machine Liquid Packing Machine Bucker Packing machine
型号Model TY-320/380G TY-320/380G TY-320/380L TY-320/380X
机箱材质Machine Material 不锈钢Stainless Steel 不锈钢Stainless Steel 不锈钢Stainless Steel 不锈钢Stainless Steel
计量范围(Measuring Range) 1~500ml 1~500ml 1~500ml 1~500ml
包装速度(Packing Speed) 30-75bags/min 30-75bags/min 30-75bags/min 30-75bags/min
切口(Notch) 平切口/花纹连袋 平切口/花纹连袋 平切口/花纹连袋 平切口/花纹连袋
Flat Notch/Pattern Cutting Flat Notch/Pattern Cutting Flat Notch/Pattern Cutting Flat Notch/Pattern Cutting
计量方式(Metering) 螺杆计量(Screw Measuring) 量杯计量(Cup Measuring) 流体泵计量(Pump Measuring) 流体泵计量(Pump Measuring)
包装材料(Film Material) 复合膜、铝膜(Composite film, Aluminum Foil) 复合膜、铝膜、无纺布(Composite film, Aluminum Foil, Non-woven fabric) 复合膜、铝膜(Composite film, Aluminum Foil) 复合膜、铝膜(Composite film, Aluminum Foil)
包装产品(Package Product) 面粉、奶粉、咖啡粉、药粉等(Flour, Milk Powder, Coffee Powder, medicine powder, ect) 砂糖、大米、茶叶等(Sugar, Rice, Tea, ect) 酱体、洗发水、蜂蜜、水等(Sauce, Shampoo, Honey, Water, ect) 五金、玩具、配件等(Hardware,toy,spare part,ect)
功率(Power) 1.2KW 1.2KW 1.2KW 1.2KW
电压(Voltage) 220V/380V 220V/380V 220V/380V 220V/380V
机器尺寸(Dimension) (L)700×(W)600×(L)1700mm (L)700×(W)600×(L)1700mm (L)700×(W)600×(L)1700mm (L)700×(W)600×(L)1700mm
重量(Weight) 180KG 180KG 180KG 180KG

After receiving your inquiry,We will send you the quotation as soon as possible.
