Automatic Flow Wrapping Rotary Pillow Packing Machine With Three Servos

Suitable for packing various kinds of regular objects like biscuits, pies , chocolates,bread, instant ,noodles, moon-cakes,drugs, daily applications, industrial parts, paper boxes, tray etc.

Min.order:1 set

Warranty:24 month

Package:Wooden box

Shipping: Ocean freight, Land freight, Air freight

As one of the leading vacuum food rotary packing machine manufacturers in China, this automatic flow wrapping rotary pillow packing machine is suitable for packing various kinds of regular objects like biscuits, pies , chocolates,bread, instant ,noodles, moon-cakes,drugs, daily applications, industrial parts, paper boxes, tray etc.



vacuum food rotary packing machine manufacturers

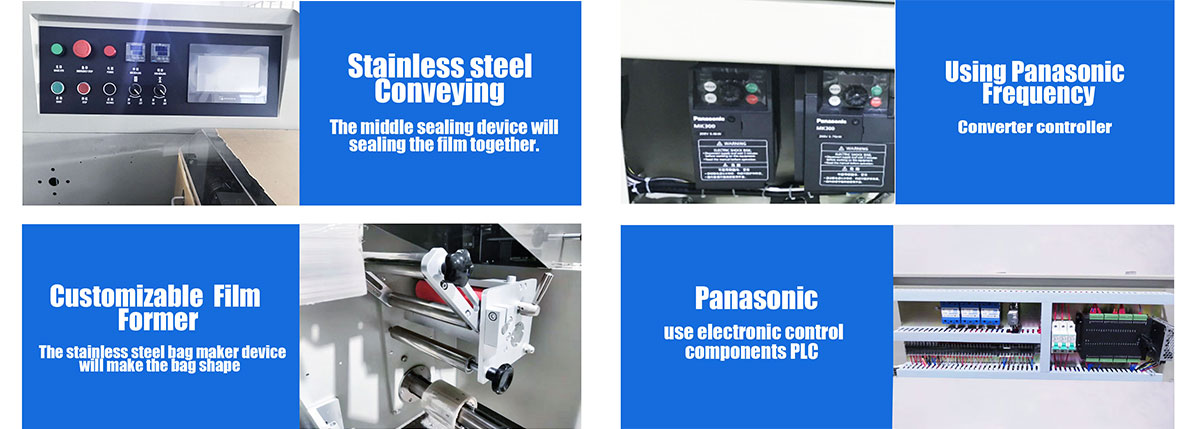

Features

1、Dual frequency conversion control, bag length can be set and cut in one step, saving time and film.

2、Interface features easy and quick setting and operation.

3、Self failure diagnosis, clear failure display.

4、High sensitivity photoelectric eye color tracing, numerical input of cutting sealing position for extra accuracy.

5、Temperature independent PID control, more suitable for packaging different materials.

6、Positioned stop function, without sticking knife or wasting film.

7、Simple driving system, reliable working, convenient maintenance.

8、All control is realized through software, easy for function adjusting and technical upgraded.



rotary vacuum packing machine factory

Model

TY-250B

TY-250D

TY-250E

TY-250S

TY-320B

TY-320D

Film width

Max.250mm

Max.180mm

Max.320mm

Bag length

65-190 or 120-280mm

90-220mm

50-115mm

45-90mm

65-190 or 120-280mm

90-220 or 150-330mm

Bag width

30-110mm

30-80mm

50-160mm

Product height

Max.40mm

Max.55mm

Max.35mm

Max.40mm

Max.55mm

Film roll diameter

Max.320mm



Packaging rate

40-230bag/min

60-330bag/min

40-230bag/min

Packaging rate

40-230bag/min

60-330bag/min

40-230bag/min

Power

220V 50/60Hz 2.4W

220V 50/60Hz 2.4W

220V 50/60Hz 2.4W

After receiving your inquiry,We will send you the quotation as soon as possible.
